Electrodes - Stainless-Steel PLATINUM 309MoL

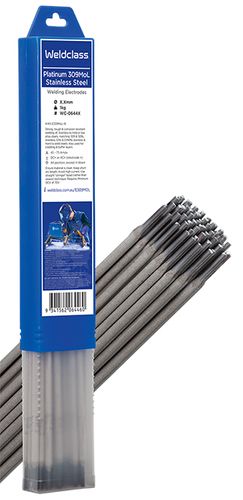

Platinum 309MoL is a very versatile 309 series stainless-steel welding rod, suitable for strong, tough & corrosion resistant welding of; Dissimiliar steel to stainless, matching 309/309L stainless-steels, CrNi & CrNiMo stainless-steels and hard-to-weld steels. Addition of 2.5% molybdenum (Mo) makes this electrode popular for welding clad steel (such as ferritic steel and Cr-Mo steel clad with 316/316L stainless-steel). Also used for buffer layers. All-positional (except vertical-down), smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance. Classification: AWS E309MoL-16. Supplied in a 1kg re-usable convenience pack to keep electrodes in good condition.

Where to buy

Image Image Part No. Description Unit of Issue Enquiry Qty
ELECTRODES STAINLESS-STEEL PLATINUM 309MoL 2.6MM 1KG WELDCLASS
WC-06446
Platinum 309MoL 2.6mm 1kg Re-Usable Pack
Unit:
PKT 1KG
ELECTRODES STAINLESS-STEEL PLATINUM 309MoL 2.6MM 1KG WELDCLASS
WC-06446
Platinum 309MoL 2.6mm 1kg Re-Usable Pack
WC-06446
PKT 1KG
ELECTRODES STAINLESS-STEEL PLATINUM 309MoL 3.2MM 1KG WELDCLASS
WC-06447
Platinum 309MoL 3.2mm 1kg Re-Usable Pack
Unit:
PKT 1KG
ELECTRODES STAINLESS-STEEL PLATINUM 309MoL 3.2MM 1KG WELDCLASS
WC-06447
Platinum 309MoL 3.2mm 1kg Re-Usable Pack
WC-06447
PKT 1KG
Disclaimer:
Any product application information on this web page is presented as "typical" and an indicative guide only, without guarantee or warranty, and Weldclass expressly disclaims any liability incurred from any reliance thereon. No data is to be construed as an official recommendation for any welding condition or technique by Weldclass. The correct product(s), settings and techniques will vary in each application and users should conduct their own research to determine the correct product and method to use in their situation. E.&O.E.

KEY FEATURES
> Strong, tough & corrosion resistant
> For: Dissimilar welding of stainless to mild steel, Matching 309/309L grades, CrNi & CrNiMo stainless and hard-to-weld steels
> All positional, except vertical-down
> Smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance

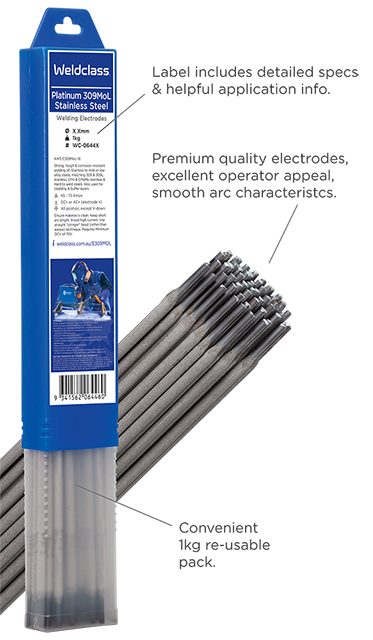

> Convenient 1kg re-usable pack keeps electrodes in good condition

APPLICATION INFO
> Deposits 23% Cr / 12%Ni / 2.5% Mo austenitic stainless steel weld metal
> High alloy content and ferrite level enable the weld metal to tolerate dilution from dissimilar and difficult-to-weld materials without hot cracking or brittle structures
> Used for wide range 300 and 400 series stainless-steels to mild / low alloy steels
> Welding matching 309 and 309L base metals
> Addition of 2.5% molybdenum (Mo) to type 309 weld metal makes this electrode popular for side welding of clad steel, such as ferritic steel and Cr-Mo steel clad with 316/316L stainless-steel
> Also used for buffer layers

OPERATING INFO
> All-positional (except vertical-down)
> Polarity: DC+ or AC+ (electrode +)
> Minimum recommended OCV (open circuit voltage): 70V
> Avoid high / excessive current
> Use straight "stringer" bead (rather than weave) technique

CLASSIFICATIONS
> AWS E309MoL-16
> AS/NZS 4854-B - E309LMoL-16

TYPICAL PROPERTIES OF ALL WELD METAL
> Tensile strength 600 Mpa (N\mm2)
> Yield strength 400 Mpa (N\mm2)
> Elongation >30%
> Composition %: C0.03 Mn1.0 Si0.70 Cr23.0 Ni12.5 Mo2.5 FeBal'
