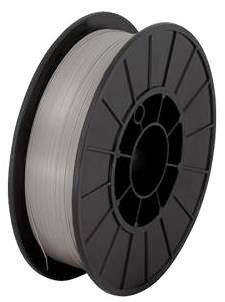

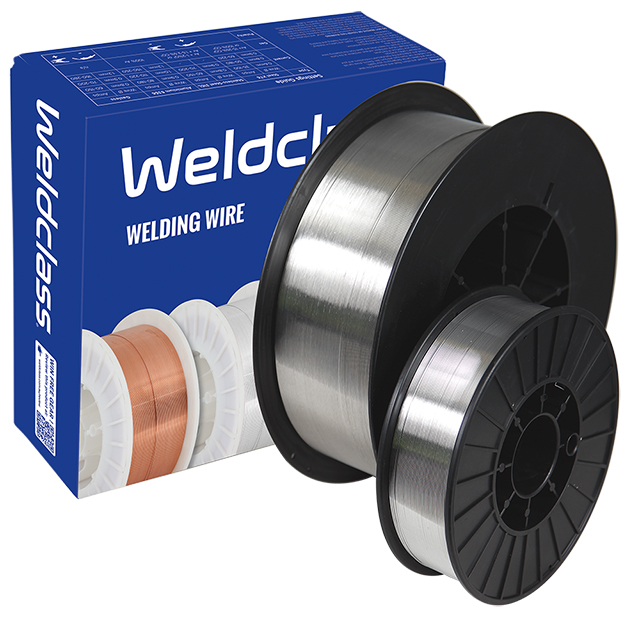

Wire - MIG Stainless-Steel PLATINUM 316Lsi
Premium 316Lsi grade MIG (GMAW) wire for welding 300 & 400 series stainless-steels. Platinum series, no quality short-cuts: Manufactured with strict quality-control, layer-wound for reliable wire feeding.
Disclaimer:
Any product application information on this web page is presented as "typical" and an indicative guide only, without guarantee or warranty, and Weldclass expressly disclaims any liability incurred from any reliance thereon. No data is to be construed as an official recommendation for any welding condition or technique by Weldclass. The correct product(s), settings and techniques will vary in each application and users should conduct their own research to determine the correct product and method to use in their situation. E.&O.E.
2-MW316L12/09 35
KEY FEATURES
> One of the most widely used grades
> Higher silicon content for arc stability
APPLICATION INFO
> Used for welding of 300 & 400 series stainless-steels
OPERATING INFO
> All-positional
> Polarity: DC+ (Wire/torch positive, Earth negative)
> Shielding Gas: Argon + 1-2% Oxygen, or Argon + 1.5-2.5% CO2, or Argon + Helium + CO2 variations
CLASSIFICATIONS
> AWS ER 316LSi
> AS/NZS ISO 14343 B SS316LSi
TYPICAL PROPERTIES OF ALL WELD METAL
> Tensile strength 639 Mpa (N\mm2)
> Yield strength 507 Mpa (N\mm2)
> Elongation 37%
> Composition %: C<0.03 Si0.65-1.00 Mn1.0-2.5 P<0.03 S<0.03 Cr18-20 Ni11-14 Mo2-3 Cu>0.75
Downloads
Related Products
-
316L series Stainless-Steel welding rods for general purpose welding of matching 316, 316L & other common stainless steels, including; 300 series, 301, 302, 304, 304L, 3Cr12, 409, 444. All-positional (except vertical-down), smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance. Classification: AWS E316L-16.
Available in 1kg re-usable packs & blister/handy packs, in 2.0mm, 2.6mm or 3.2mm. -
Platinum 309MoL is a very versatile 309 series stainless-steel welding rod, suitable for strong, tough & corrosion resistant welding of; Dissimiliar steel to stainless, matching 309/309L stainless-steels, CrNi & CrNiMo stainless-steels and hard-to-weld steels. Addition of 2.5% molybdenum (Mo) makes this electrode popular for welding clad steel (such as ferritic steel and Cr-Mo steel clad with 316/316L stainless-steel). Also used for buffer layers. All-positional (except vertical-down), smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance. Classification: AWS E309MoL-16. Supplied in a 1kg re-usable convenience pack to keep electrodes in good condition.
-
Premium 309LSi grade MIG (GMAW) wire for welding matching 309 stainless-steels, and dissimiar "300 series" stainless to mild steel. Platinum series, no quality short-cuts: Manufactured with strict quality-control, layer-wound for reliable wire feeding.
