TIG Welding Torches, Spares & Tungsten Electrodes
Wide range of common TIG torches, consumable parts and Tungsten Electrodes.
When it comes to TIG welding guns and parts, quality and consistancy is critical. Weldclass has a "no short cuts" approach to quality - Whether it's the detail in the construction of a TIG torch, or the quality of raw material in TIG collet. We pay attention to the little things that get the job done without any unwanted hassles or down-time.
Weldclass TIG guns and TIG spares are available from Weldclass distributors across Australia.
TIG Torch Selection Guide TIG Parts Explained TIG Catalogue Pdf
1 to 15 of 15 results
-

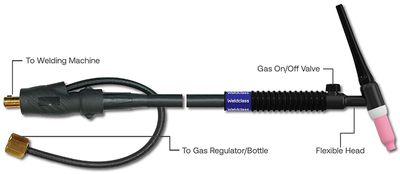

Standard TIG torches with valve, to suit most inverter welders that have a basic / standard lift-arc or scratch-start function, where machine does not have an internal TIG gas line / fitting and gas hose on torch is connected directly to the gas bottle / regulator.
Ready-to-weld TIG torch packages, with valved flexible head, 1.6/2.4mm parts & tungsten electrodes. Available in #17 series (150A) 4m, or #26 series (200A) 4m & 8m. Now with 7-year warranty offer. -

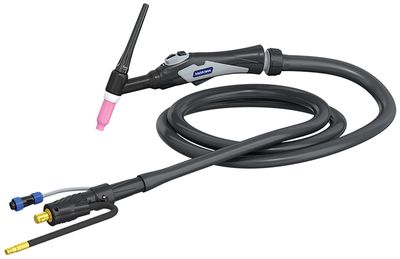

PLATINUM TK Super-Flex series torches offer exceptional flexibility and control, even in the most delicate and demanding TIG applications. Designed for use on professional TIG welding machines (such as AC/DC), where a light weight, flexible and slimline / low-profile torch is preferred.
Can be used together with a foot controller/pedal, or as a switched torch using the optional trigger kit.
Features highly flexible 1-piece cable with soft braided cover, flexi torch head, parts kit, and a range of gas fittings to suit most machines/models. Availble in #17 series and #18 water-cooled series. -
TIG Torches to suit specific Weldclass welders. Includes remote amperage adjustment on handle, and highly flexible cable with soft cover. See details below for more information on each torch.
-

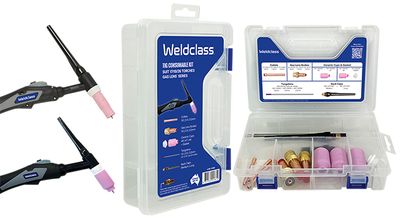

Consumable parts kits for TIG torches with storage box. Range of kits available to suit 17/18/26 series torches, including standard and gas lens series parts. Premium parts designed for consistency and long-life, no quality short-cuts. Compact storage case easily fits in any toolbox or hang on pegboard/slatwall, with images and part numbers for easy identification and re-ordering.
-
PLATINUM PX series TIG parts feature glass cups / nozzles, and are available as complete kits or individual replacement parts. High-temperature glass cups provide superior arc visibility compared to ceramic cups, benefiting experienced and beginner operators alike.
Fit to common 17/18/26 series torches, premium parts designed for consistency and long-life, no quality short-cuts. Also compatible with Unimig pyrex series.
Parts kits include compact storage box, to easily fit in any toolbox or hang on pegboard/slatwall, with images and part numbers for easy identification and re-ordering. -

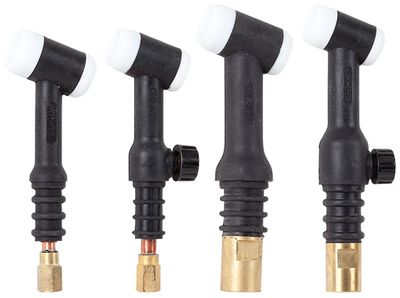

Torch Heads, including 17 & 26 series, valved & non-valved. No quality short-cuts, designed for consistency and long-life.
-
Back Caps to suit 17, 18 & 26 series TIG welding torches; including short, medium & long. No quality short-cuts, designed for consistancy and long-life.
-
Collets to suit 17, 18 & 26 series TIG welding torches. No quality short-cuts, designed for consistancy and long-life.
-
Wedge collets provide reliable clamping of the tungsten electrode. A superior alternative to standard 'split' collets which have a tendancy to twist, especially when subject to high heat levels or prolonged use.
Available in;
Stubby (short): As used in used in PLATINUM PX series glass cup kits
Standard length: Interchangeable / compatible with standard 17/18/26 series parts. -
Collet Bodies to suit 17, 18 & 26 series TIG welding torches. No quality short-cuts, designed for consistancy and long-life. Use with standard 'alumina' cups.
-
Ceramic 'Alumina' Cups to suit 17, 18 & 26 series TIG welding torches. No quality short-cuts, designed for consistancy and long-life. Use with standard collets.
-
'Gas Lens' Collet Bodies to suit 17, 18 & 26 series TIG welding torches. No quality short-cuts, designed for consistancy and long-life. Incorporate a fine mesh gas filter for low-turbulence and smooth, linear gas flow - improves weld quality and allows longer tungsten stick-out. Use with gas lens cups.
-
Ceramic 'Gas Lens' Cups to suit 17, 18 & 26 series TIG welding torches. No quality short-cuts, designed for consistancy and long-life. Use with gas lens collet bodies.
-
Insulators & Gaskets for TIG Welding Torches
-
The high-performance, All-metal tungsten! Weldclass RE4 purple-tip TIG Tungsten electrodes are suitable for both DC (Steel, Stainless steel etc) and AC (Aluminium) TIG welding. Maintains tip shape, reliable arc striking, low burn off rate, long service life and smooth/stable arc.
