Electrodes - Universal PLATINUM 312

312 "universal" series weld-all style electrodes (welding rods) for high-strength and crack-resistant welding of almost any steel or stainless-steel, including dissimiliar metals. Ideal for; Unknown steels, Dissimilar steels (eg steel to stainless), Die or tool steel, etc. (Not recommended for cast iron). Classification E312-16.

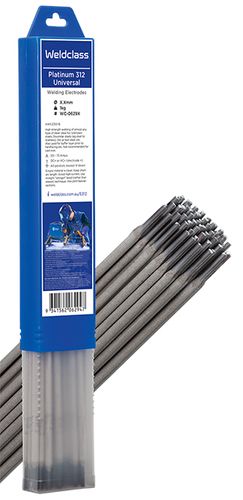

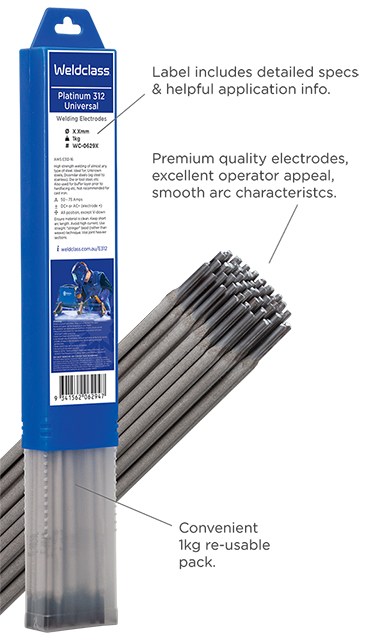

Available in 1kg re-usable packs & blister/handy packs, in 2.6mm & 3.2mm.

Where to buy

Image Image Part No. Description Unit of Issue Enquiry Qty
ELECTRODES UNIVERSAL PLATINUM 312 2.6MM 1KG WELDCLASS
WC-06294
Platinum 312 2.6mm 1kg Re-Usable Pack
Unit:
PKT 1KG
ELECTRODES UNIVERSAL PLATINUM 312 2.6MM 1KG WELDCLASS
WC-06294
Platinum 312 2.6mm 1kg Re-Usable Pack
WC-06294
PKT 1KG
ELECTRODES UNIVERSAL PLATINUM 312 2.6MM PK 10 RODS WELDCLASS
P2-31226
Platinum 312 2.6mm Blister Handy-Pack (10 Rods)
Unit:
PKT
ELECTRODES UNIVERSAL PLATINUM 312 2.6MM PK 10 RODS WELDCLASS
P2-31226
Platinum 312 2.6mm Blister Handy-Pack (10 Rods)
P2-31226
PKT
ELECTRODES UNIVERSAL PLATINUM 312 3.2MM 1KG WELDCLASS
WC-06295
Platinum 312 3.2mm 1kg Re-Usable Pack
Unit:
PKT 1KG
ELECTRODES UNIVERSAL PLATINUM 312 3.2MM 1KG WELDCLASS
WC-06295
Platinum 312 3.2mm 1kg Re-Usable Pack
WC-06295
PKT 1KG
ELECTRODES UNIVERSAL PLATINUM 312 3.2MM PK 8 RODS WELDCLASS
P2-31232
Platinum 312 3.2mm Blister Handy-Pack (8 Rods)
Unit:
PKT
ELECTRODES UNIVERSAL PLATINUM 312 3.2MM PK 8 RODS WELDCLASS
P2-31232
Platinum 312 3.2mm Blister Handy-Pack (8 Rods)
P2-31232
PKT
ELECTRODES UNIVERSAL S-312.16 3.2MM 2.5KG HYUNDAI
2-31232
S-312.16 3.2mm 2.5kg Hyundai
Unit:
PKT 2.5KG
ELECTRODES UNIVERSAL S-312.16 3.2MM 2.5KG HYUNDAI
2-31232
S-312.16 3.2mm 2.5kg Hyundai
2-31232
PKT 2.5KG
Disclaimer:
Any product application information on this web page is presented as "typical" and an indicative guide only, without guarantee or warranty, and Weldclass expressly disclaims any liability incurred from any reliance thereon. No data is to be construed as an official recommendation for any welding condition or technique by Weldclass. The correct product(s), settings and techniques will vary in each application and users should conduct their own research to determine the correct product and method to use in their situation. E.&O.E.

KEY FEATURES
> Univeral electrode for welding almost any steel or stainless-steel, including dissimiliar metals
> Weld metal is strong and crack resistant
> All positional, except vertical-down
> Smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance
> Easy to use & suitable for low OCV (open circuit voltage) welding machines (>45V)

APPLICATION INFO:
> Deposits 29% Cr / 9% Ni stainless steel type filler metal
> High strength & excellent resistance to hot cracking even under conditions of high dilution
> Commonly used for repair and maintenance welding of unknown &/or dissimilar steels
> Mild steel to stainless-steel
> Die or tool steel
> Suitable as buffer layer prior to hard facing
> NOT recommended for cast iron

OPERATING INFO:
> All welding positions, excluding vertical down
> Polarity: DC+ or AC+ (electrode +)
> Minimum recommended OCV (open circuit voltage): 45V
> Avoid high / excessive current
> Use straight "stringer" bead (rather than weave) technique

CLASSIFICATIONS:
> AWS A5.4 E 312-16

TYPICAL PROPERTIES OF ALL WELD METAL
> Tensile strength 770 Mpa (N\mm2)
> Yield strength 500 Mpa (N\mm2)
> Elongation 35%
> Composition %: C0.08 Mn1.30 Si0.80 Cr29.0 Ni8.50 FeBal'

FAQs:
How many rods per pack/KG ?
2.6mm = approx. 50 rods per KG / 125 rods per 2.5kg pkt
3.2mm = approx. 33 rods per KG / 83 rods per 2.5kg pkt
