TIG Parts & Kits - PLATINUM PX Glass Cup Series
PLATINUM PX series TIG parts feature glass cups / nozzles, and are available as complete kits or individual replacement parts. High-temperature glass cups provide superior arc visibility compared to ceramic cups, benefiting experienced and beginner operators alike.
Fit to common 17/18/26 series torches, premium parts designed for consistency and long-life, no quality short-cuts. Also compatible with Unimig pyrex series.
Parts kits include compact storage box, to easily fit in any toolbox or hang on pegboard/slatwall, with images and part numbers for easy identification and re-ordering.
Fit to common 17/18/26 series torches, premium parts designed for consistency and long-life, no quality short-cuts. Also compatible with Unimig pyrex series.
Parts kits include compact storage box, to easily fit in any toolbox or hang on pegboard/slatwall, with images and part numbers for easy identification and re-ordering.
Also Known As:
Pyrex cups, pyrex nozzles
WC-01662 77.02
KEY FEATURES
- All-in-one, ready-to-weld kits: included all parts needed to fit to 17/18/26 torch head & start welding, including 1.6/2.4/3.2mm tungstens
- All parts available as individual items: purchase replacement items as needed
- High-temperature pyrex-style glass cups provide superior arc visibility compared to ceramic cups
- Mesh / gauze filter for smooth gas flow, improves weld quality and allows longer tungsten stick-out
- Wedge collet system ensures reliable clamping of tungsten & prevents twisting
APPLICATION
- Benefits experienced and beginner operators alike
- Especially useful when welding in corners or tight spaces
- Fits common 17/18/26 series TIG torches
- Compatible with Unimig pyrex 17/18/26 series parts
MORE INFO

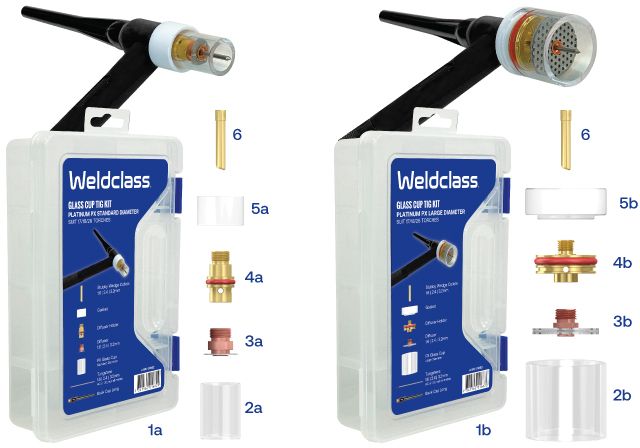

- Available in standard diameter (cup is 14mm ID) and large diameter (cup is 29mm ID)
- On large diameter series, cup is adjustable allowing variable (short or long) tungsten stick-out length

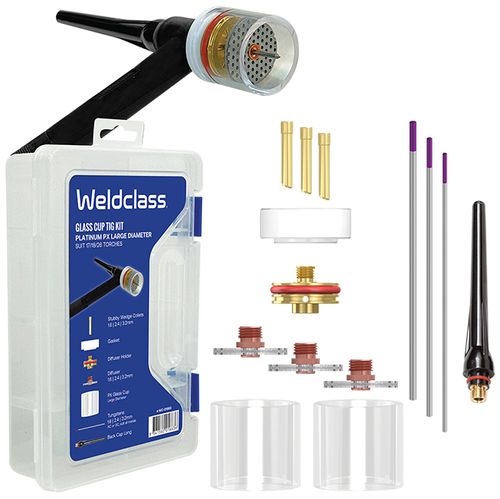

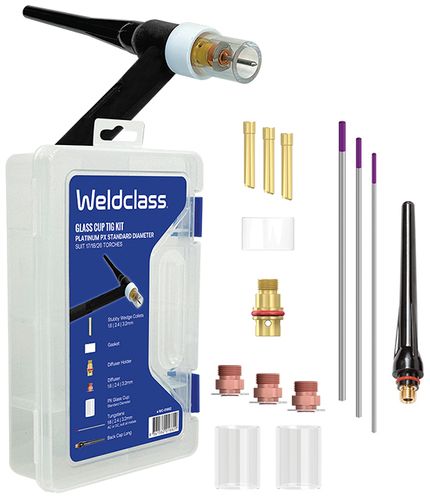

PARTS KITS INCLUDE

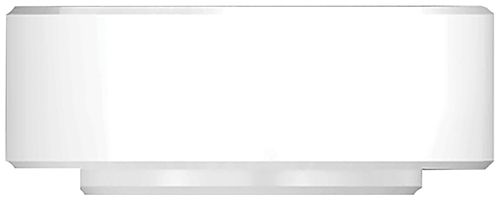

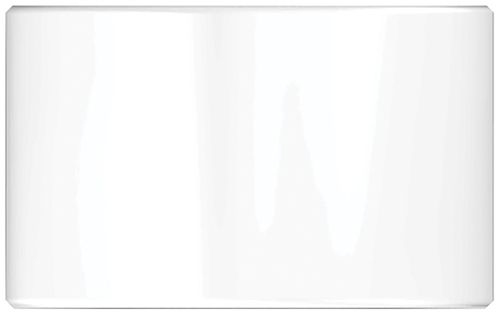

- Heat shield / insulator x 1
- Stubby wedge collet 1.6/2.4/3.2mm x 1 each

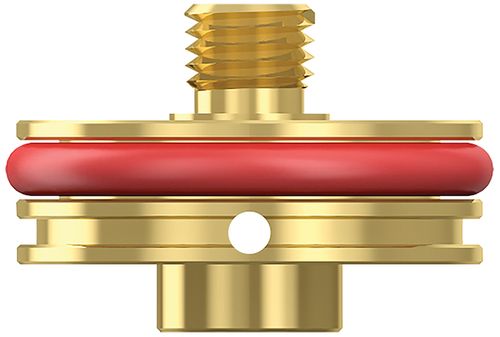

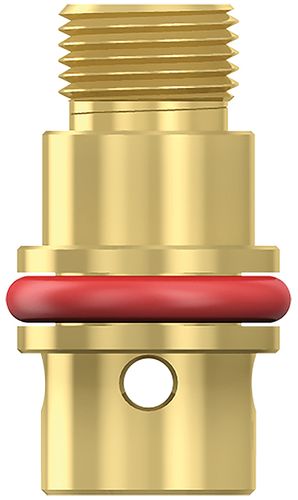

- Collet body / diffuser holder with o-ring x 1

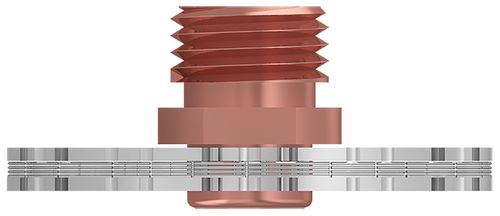

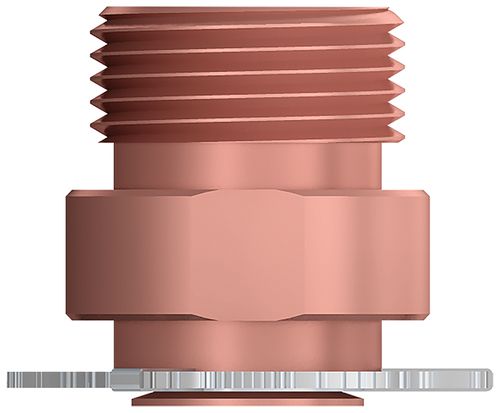

- Diffuser / gas lens with gauze 1.6/2.4/3.2mm x 1 each

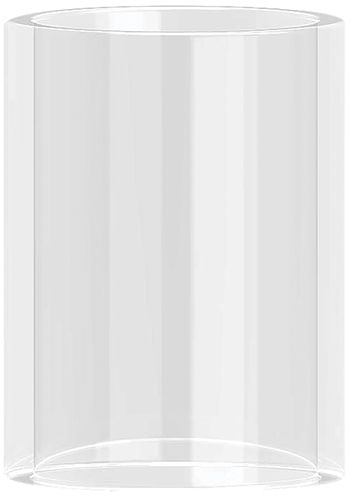

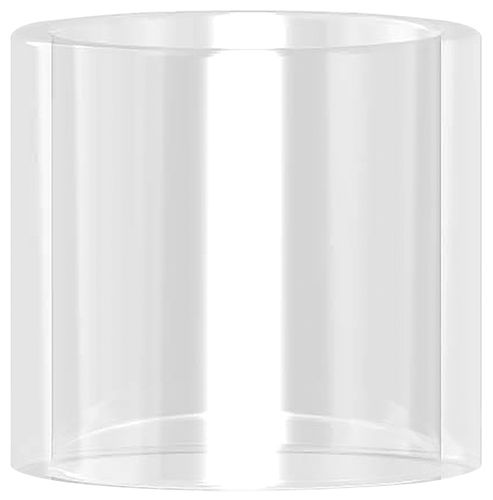

- Glass nozzle / cup x 2
- Long back cap x 1
- All-metal (DC & AC/DC) tungsten electrodes 1.6/2.4/3.2mm x 1 each
