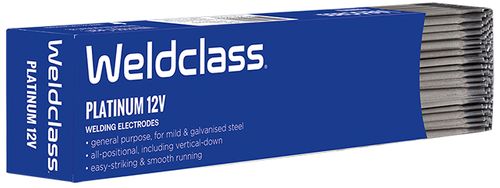

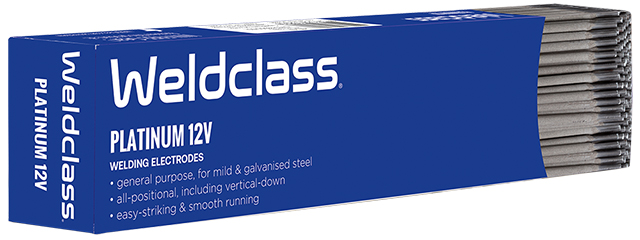

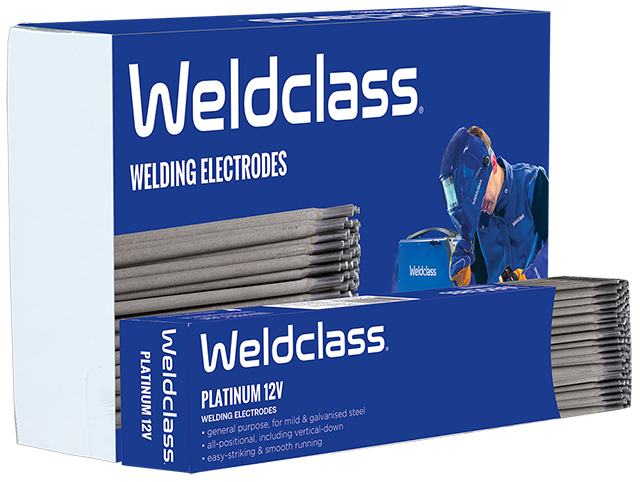

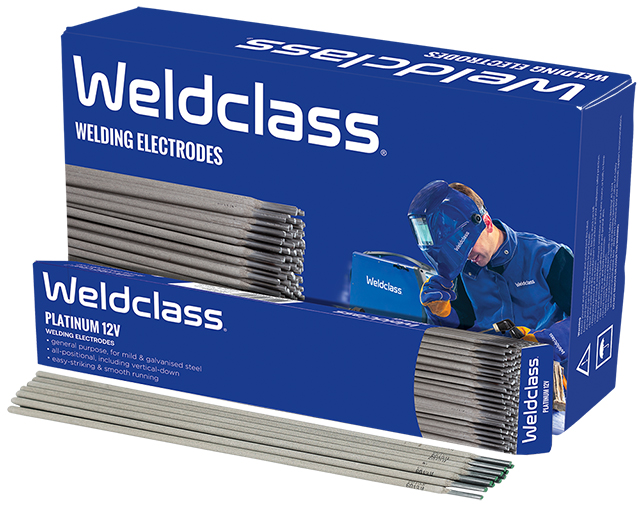

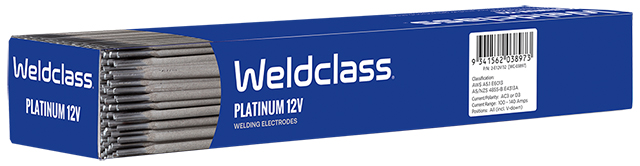

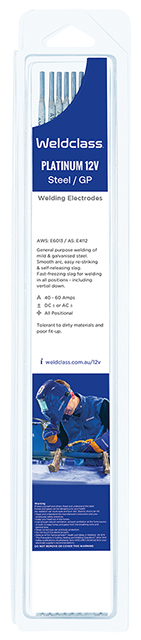

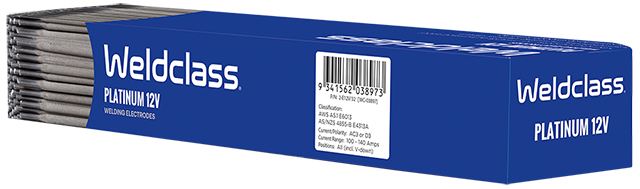

Electrodes - PLATINUM 12V (General Purpose)
Brand
A seriously smooth and easy-to-use general-purpose electrode for welding steel. Platinum 12V welding rods are preferred by welders across Australia for their superior arc characteristics, all-position capability (including vertical down), low spatter and easy de-slagging. Great for mild and galvanised steel. Available in 2.0mm, 2.6mm (2.5mm) & 3.2mm. Specifications: AWS A5.1 E6013 / AS/NZS 4855 – B-E43 13 A.
Also Known As:
General purpose / Welding Rod for steel / Stick Electrode / Stick Welding Rod / MMA Electrode / MMAW Electrode
Disclaimer:
Any product application information on this web page is presented as "typical” and an indicative guide only, without guarantee or warranty, and Weldclass expressly disclaims any liability incurred from any reliance thereon. No data is to be construed as an official recommendation for any welding condition or technique by Weldclass. The correct product(s), settings and techniques will vary in each application and users should conduct their own research to determine the correct product and method to use in their situation. E.&O.E.
WHY CHOOSE PLAINTUM 12V ELECTRODES ?
> Excellent Operator Appeal: Very Smooth & Stable Arc, Easy Striking, Low Spatter, Self-Detaching / Easy-to-remove Slag
> User Friendly: Tolerant to Dirty / Rusty Steel & Poor Fit Up
> All-Positional: Fast-Freezing Slag for fillet & butt welding in All Positions, including Vertical Down
APPLICATION INFO:
> Ideal General Purpose electrode for fabrication, repair, fencing, light structural & more
> Unbeatable Performance on: Mild, Galvanized, Plate, Sheet & Tubular/RHS Steel
OPERATING INFO:
> Polarity: DC± or AC±
> Positions: All-positional
> Minimum recommended OCV (open circuit voltage): 40V
CLASSIFICATIONS:
> AWS specification A5.1 E6013
> AS/NZS 4855 – B-E43 13 A (Previous Classification AS/NZS 1553.1 E4112-0)
FAQs:
How many rods per pack/KG ?
2.6mm = approx. 50 rods per KG / 125 rods per 2.5kg pkt
3.2mm = approx. 33 rods per KG / 83 rods per 2.5kg pkt
RELATED INFO & ARTICLES
The Weldclass stick welding electrode Handy Pack Range
The MMA "Stick" Welding Process - your questions answered
What is Open Circuit Voltage (OCV) ?
MMA "Stick" Welding: What is Hot Start, Arc Force & Anti-Stick?
Downloads
David - QLD
I would recommend these rods,they sure have an easy to detatch slag and minimal spatter,i ran them against the regular rods I use on both clean steel and rusty and id say the weldclass burnt smoother in both cases,they strike straight up from new or used,definately a rod worth stocking in 2.6 and 3.2mm.
25-Apr-2018
Matthew - NSW
The 12V rods I got with my helmet performed as well as those at twice the price. Will use Weldclass by choice in the future.
01-Dec-2017
I would recommend these rods,they sure have an easy to detatch slag and minimal spatter,i ran them against the regular rods I use on both clean steel and rusty and id say the weldclass burnt smoother in both cases,they strike straight up from new or used,definately a rod worth stocking in 2.6 and 3.2mm.
25-Apr-2018
Matthew - NSW
The 12V rods I got with my helmet performed as well as those at twice the price. Will use Weldclass by choice in the future.
01-Dec-2017
