Electrode Ovens

Now available with 7-year warranty. Portable electrode drying oven (welding rod hot box oven). Robust, lightweight, portable."Two models in one"... designed to suit users that are looking for either 5kg or 10kg capacity. If you only need 5kg capacity, the weight, size & portability is comparable to most 5kg ovens, but with the capacity to fit 10kg if required. If you need 10kg capacity, you'll find the new oven considerably lighter, more compact and more portable than many others on the market. Adjustable temperature 50-200c. Keeps electrodes moisture-free for optimum weld quality and electrode performance. Cylindrical shaped chamber keeps electrodes in better condition & avoids flux chipping (unlike Square shaped ovens where electrodes tend to roll from one corner to another and are more readily damaged). Click here to read about the design features of this oven in more detail.
Image Image Part No. Description Retail Incl. GST Where to Buy Enquiry Qty

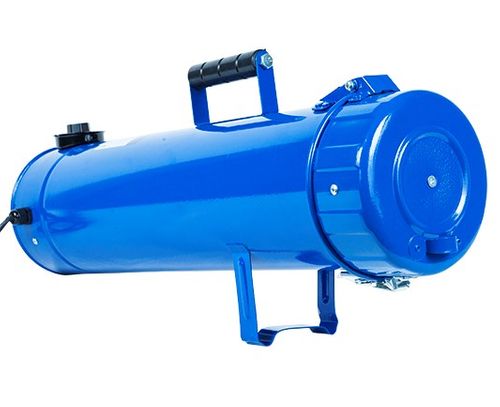

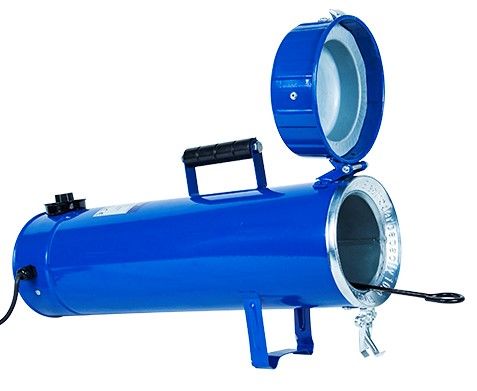

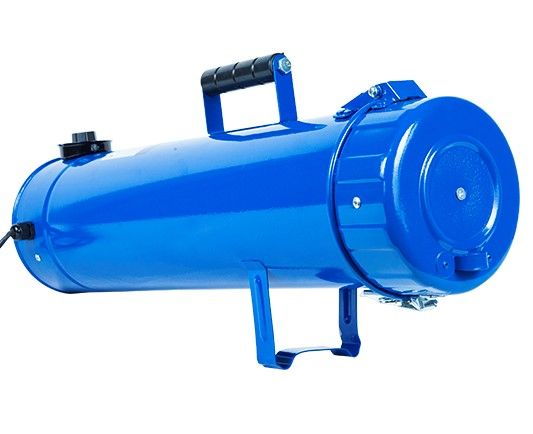

Electrode Oven 5-10 kg Capacity Weldclass
WC-01550
5-10kg Capacity (2 Models in One) 240v, 50-200c
Retail Incl. GST: $319.00
Electrode Oven 5-10 kg Capacity Weldclass
WC-01550
5-10kg Capacity (2 Models in One) 240v, 50-200c
WC-01550
$319.00
Also Known As:
6-10KGEO, 6-5KGEO
WC-01550 165.02
WHY USE WELDCLASS ELECTRODE OVEN ?
  • 7-Year Warranty*
  • Keeps electrodes moisture-free for optimum weld quality and electrode performance
  • 5-10kg capacity (two models in one)
  • Cylindrical Chamber keeps electrodes in better condition & avoids flux chipping (unlike Square shaped ovens where electrodes tend to roll from one corner to another and are more readily damaged)
  • Lightweight (4.5kg) = Reduced strain on operator
"TWO MODELS IN ONE"
  • Designed to suit users that are looking for either 5kg or 10kg capacity.
  • Weight, size & portability is comparable to most 5kg ovens, but with the capacity to fit 10kg if required
  • Considerably lighter, more compact and more portable than most other 10kg models
APPLICATION INFO:
  • Commonly used with Low-Hydrogen electrodes, to eliminate moisture contamination & maintain electrode mechanical properties
  • Suitable for all types of electrodes
WHAT ELSE ?
  • Variable temperature control 50-200c

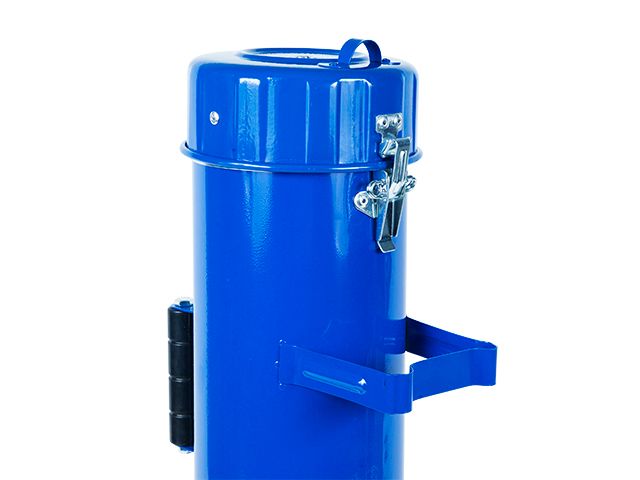

  • Over-centre latch to hold lid firmly shut

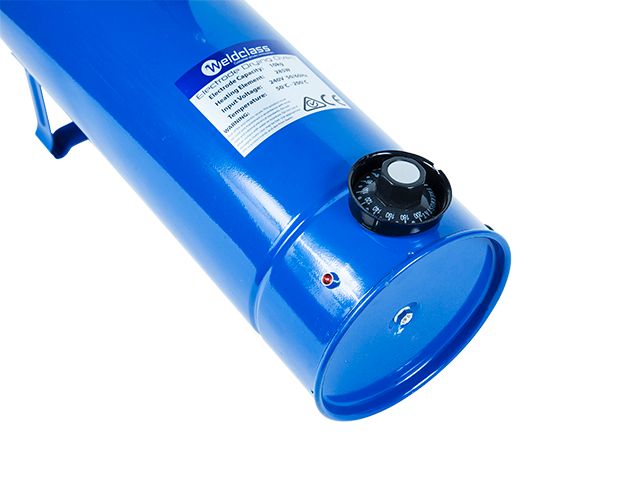

  • Protected temperature control knob
  • Insulated lid for improved temperature stability
  • Overall dimensions: 600 x 300 x 160mm including handle and foot
  • Shipping Weight / Dimensions: 5.5kg 280 x 180 x 620mm
  • Galvanised internal chamber for durability
  • Internal chamber size: ø105 dia x 470mm
  • Fits electrodes up to 500mm long
  • Power supply: 240v 10A
  • Heating element: 285W
  • Weight: 4.5kg
  • Approvals / Conformance: CE EN 61000: 6-1, 6-3, 3-2, 3-3
RELATED INFO & ARTICLES *Standard warranty 6 months, with extended 7 year warranty available if registered online after purchase, click here for details.
