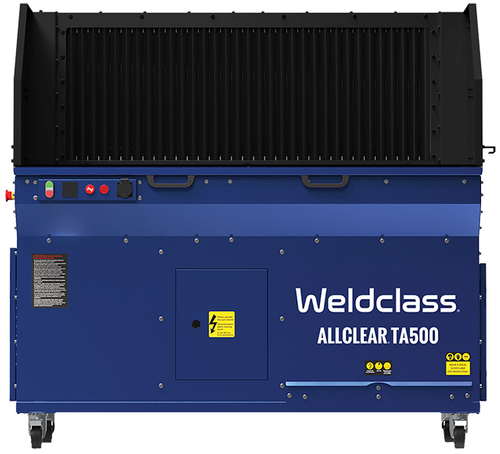

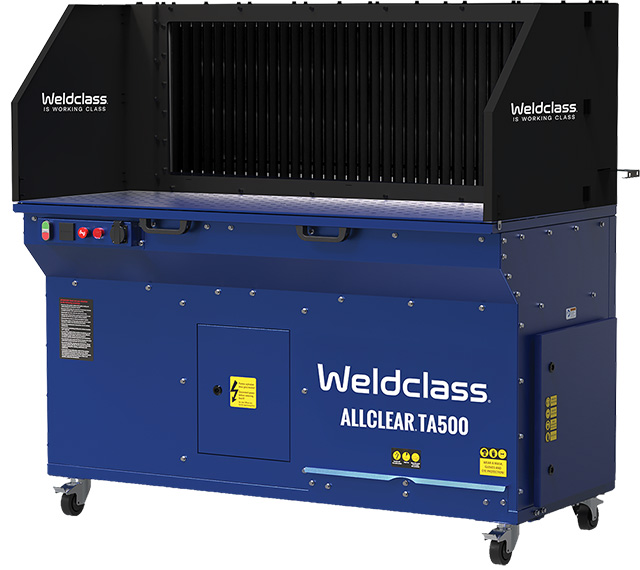

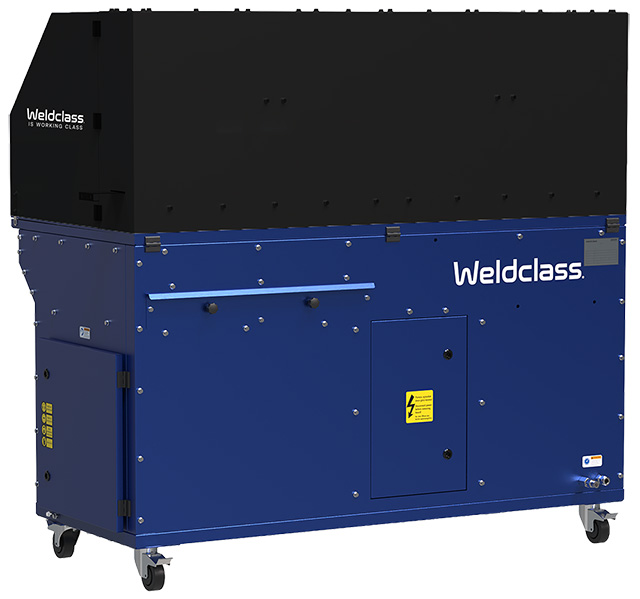

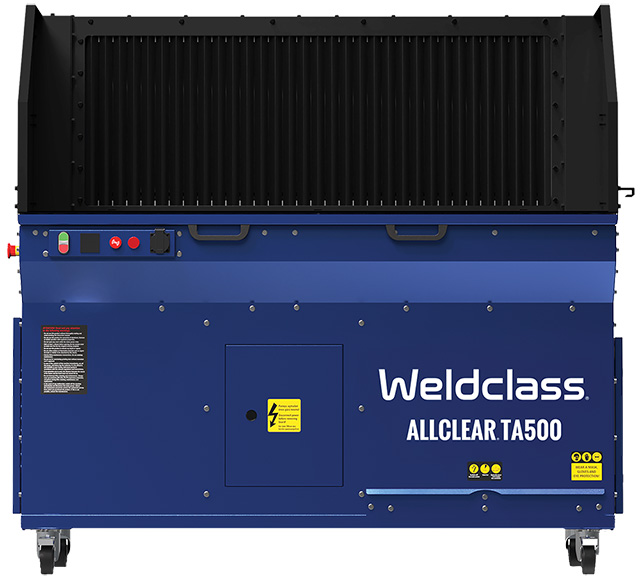

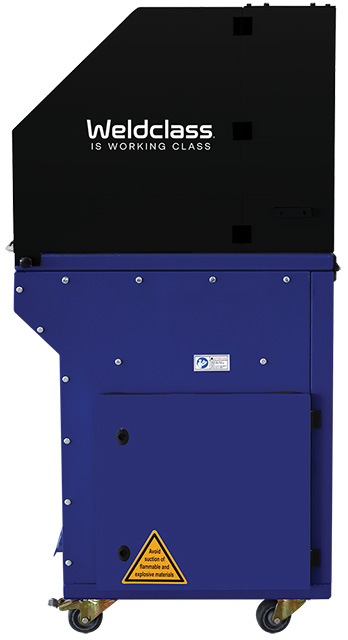

Fume Extraction Grinding & Welding Table ALLCLEAR® TA500
Meet the ALLCLEAR® TA500, a heavy-duty mobile downdraft table with back draft capture for welding and grinding. With a powerful 2.2kW motor delivering up to 2,500m³/hr, it pulls fumes and dust away fast, helping keep your breathing zone clearer.
Automatic filter cleaning keeps suction strong with less down-time. The 1500 x 550mm work surface, 5mm tabletop, and 500kg load rating are built for real fabrication work, plus hinged side panels to handle longer jobs.
Spark management helps protect the cleanable F9 cartridge filter (14m²), with an optional H13 HEPA upgrade. Includes working hour counter, filter fullness warning, and malfunction warning. On casters for mobility, runs on 415V 3-phase (5 pin).
Get a Quote | Contact A Fume Specialist
Automatic filter cleaning keeps suction strong with less down-time. The 1500 x 550mm work surface, 5mm tabletop, and 500kg load rating are built for real fabrication work, plus hinged side panels to handle longer jobs.
Spark management helps protect the cleanable F9 cartridge filter (14m²), with an optional H13 HEPA upgrade. Includes working hour counter, filter fullness warning, and malfunction warning. On casters for mobility, runs on 415V 3-phase (5 pin).
Get a Quote | Contact A Fume Specialist
Also Known As:
Grinding Table, Back Draft Table, Welding Bench
Disclaimer:
Regular maintenance must be carried out, and all warnings and instructions provided in user manual and on the unit must be followed, for ongoing safe use and prevention of fire hazards. Poor maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
WTA500 141.27
AT A GLANCE
- 7 Year Warranty Offer1
- Welding and grinding table with inbuilt filter
- Backdraft and Downdraft for optimum fume capture across multiple processes
- For welding, grinding, and cutting fumes
- Spacious 1500 x 550mm workbench area
- Robust 5mm thick heavy-duty worktop
- Hinged side panels allow placement of longer objects on the table
- Heavy-duty build for industrial use, with up to 2,500m³/hr airflow rate and 500kg load capacity
- Operates on 415V 3-phase power, 5 pin
- Cleanable, reusable cartridge filter for longer filter life and reduced operating costs
- Automatic filter cleaning
APPLICATIONS
- Welding, including MIG, Flux-Core, Stick, TIG
- Grinding of steel or stainless-steel
- Oxy Brazing and Soldering
- Suitability for Plasma or Oxy-fuel cutting depends on application4
- Multi-level spark filtration (mesh filter plus deflector) allows for safe use with processes that generate high levels of sparks and spatter2,4
- WARNING: NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour3
FEATURES
- 10A ~230–240V outlet at front of table provides convenient power supply for tools such as welders and grinders
- For operator safety and compliance, power to the outlet is only available when the table is on.
- Replaceable Spark Filter, plus special Deflector Plate shields the main filter from coarse particles & sparks, greatly reducing the risk of burnout / fire, and further increasing filter life2
- Automatic filter cleaning saves operator down-time
- ‘Pulse’ cleaning system (accumulates then releases a burst of compressed air) provides a more thorough clean, maintains better filter condition, and extends filter life
- Special dust collection drawer / tray allows easy & safe removal of dust (ejected from filter cleaning)

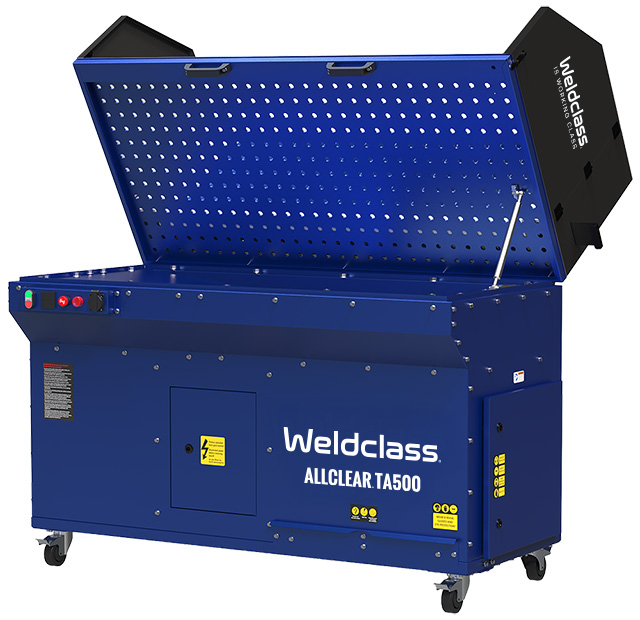

- Hinged left and right side panels can be swung back, to allow placement of larger objects on the table
- Ergonomic design with easy access to replacement filters and service areas
- Heavy-duty 5mm steel table-top for durability and surface rigidity
- Commonly used in Education, Maintenance, and Industrial applications
- Working hour counter, filter fullness indicator, malfunction warning
- Made in Europe
SPECIFICATIONS
- Power supply: 3-phase ~415V
- Power plug required: 415V ≥10A 5 pin, plug not included5
- Work area / table top dimensions: W1500 x D550mm
- Table top height: Approx 900mm
- Overall dimensions: W1580 x D780 x H1450mm
- Weight: 320kg
- Load capacity: 500kg
- Motor size: 2.2kw
- Filter type: Cleanable
- Filter cleaning: Automatic (when connected to compressed air)
- Filter surface area: 14m²
- Max air flow: 2,500m³ / hour
- Noise level: 74 dBA
- Table Top: 5mm coated steel
- Body: coated steel
- Fan: Aluminium
- Air supply pressure required: 3-4 bar / 300-400 kPa / 44–58 psi
- Air supply flow required: Because air is gradually accumulated in a reservoir inside the AllClear unit, air compressor flow (LPM/CFM) capacity is not critical
- Air inlet fitting: Male “Nitto” style connection
OPTIONAL ACCESSORES & COMMON SPARE PARTS
- Cutting Bed (W01598)4
- Floor Mounting Kit (W01600)
- Main cartridge filter standard F9 (91990116)
- Optional HEPA (high efficiency) H13 main cartridge filter (91990118)
1 Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
2 Regular maintenance must be carried out, and all warnings and instructions provided in the user manual and on the unit must be followed for ongoing safe use and prevention of fire hazards. Poor or improper maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
3 Whilst aluminium welding fumes can be safely extracted, Aluminium Dust (including grinding dust) can be explosive when airborne, and for this reason, fume extractors and downdraft tables should NOT be used for extraction of aluminium grinding dust or applications where aluminium dust may be present in the extraction zone. Oil mist and gases can also cause explosion. Water vapour will damage the filter.
4 Compared to welding and grinding, Plasma and Oxy-Fuel cutting processes produce large volumes of hot and/or molten metal/dross particles that are projected downwards. This can cause: a) a high rate of wear to the table top and spatter/dross build-up, b) rapid filter clogging and loss of fume extraction performance, c) fire hazard if filter systems become worn or overwhelmed with a large volume of hot particles/dross.
ALLCLEAR TA400/TA500 Tables are generally suitable for Infrequent and Light-Duty oxy or plasma cutting only, provided that precautions are taken for protection of the table top and filters are checked and cleaned regularly. Use of ALLCLEAR TA400/TA500 Tables in their standard configuration for frequent and/or medium-to-heavy oxy or plasma cutting is NOT recommended by Weldclass, without appropriate modifications for hot material/dross management. Contact Weldclass for more information on solutions for plasma and oxy-fuel cutting.
5 Power plug not included. Requires 415V 5 pin plug, with amperage 10A or higher. To ensure correct rotation/direction of extractor fan/motor, the plug wiring ‘phase rotation’ has to match the wiring at the premises/facility of use (phase rotation wiring of any 3-phase circuit can vary from one facility to another). Plug should be fitted by a qualified electrician on the premises.
,
