Mobile Welding Fume Extractor ALLCLEAR® MA350 AUTO

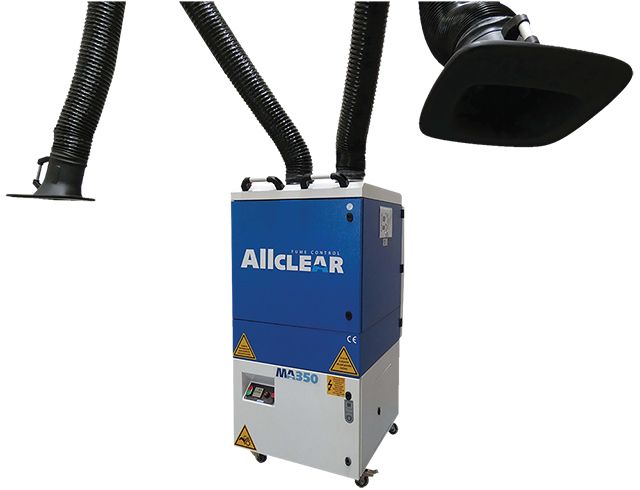

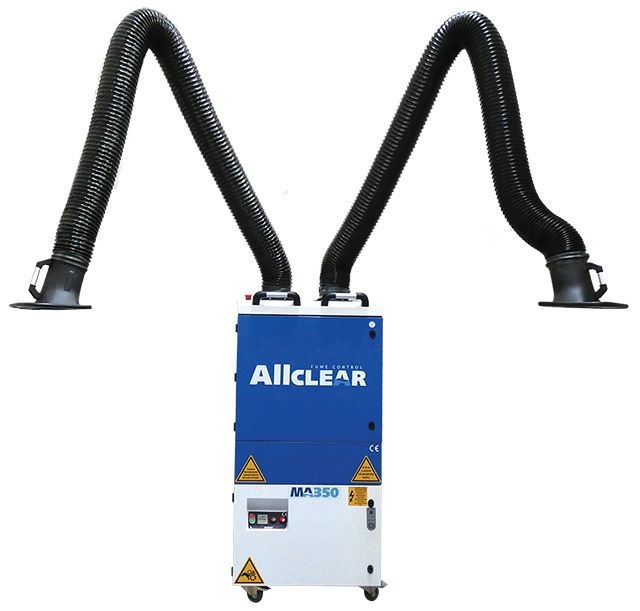

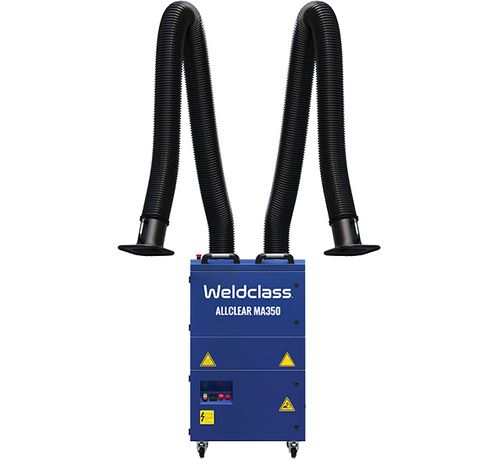

The ALLCLEAR® MA350 AUTO is a 415V mobile fume extraction and filtration unit for welding and grinding, with automatic compressed-air filter cleaning system for high efficiency and ease of use. With cleanable cartridge filter for extended filter life, the MA350 AUTO offers significantly lower operating costs vs traditional filters. A special deflector plate above the filter further extends filter life and virtually eliminates the risk of fire. Equipped with twin 3-metre arms, working hour counter, filter fullness indicator, malfunction warning, and a unique dust collection bin. Mounted on casters for mobility, and operates off 3-phase 415V power supply.
Get a Quote | Request a Demo
Get a Quote | Request a Demo
91350AMA3 141.17
Mobile Extractors: The Pros & Cons
AT A GLANCE
- 7 Year Warranty Offer*
- For welding, grinding, cutting & gouging fumes
- Operates on 415V 3-phase power
- Twin 3m arms provide wider reach & minimise the need to move main unit

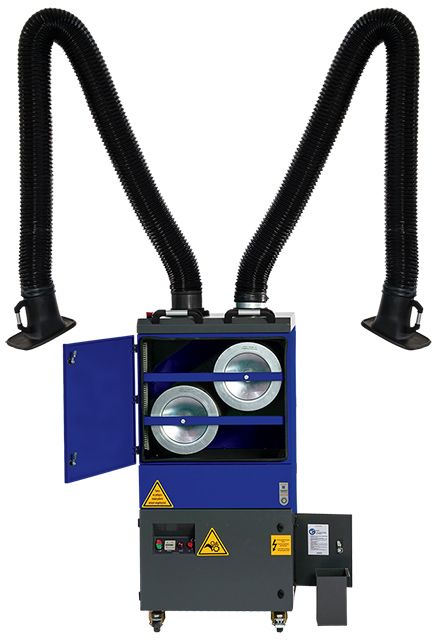

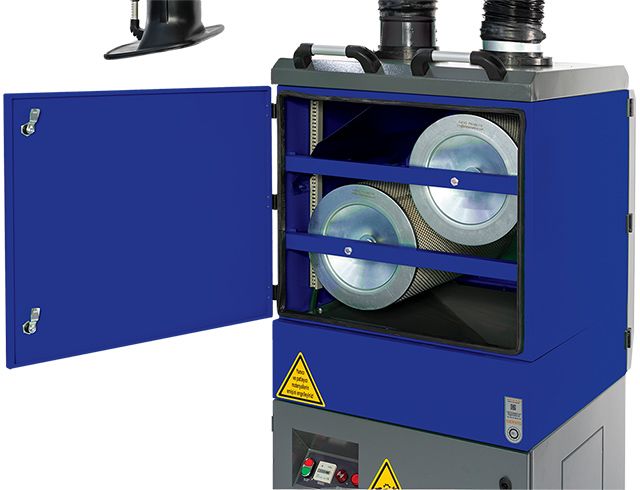

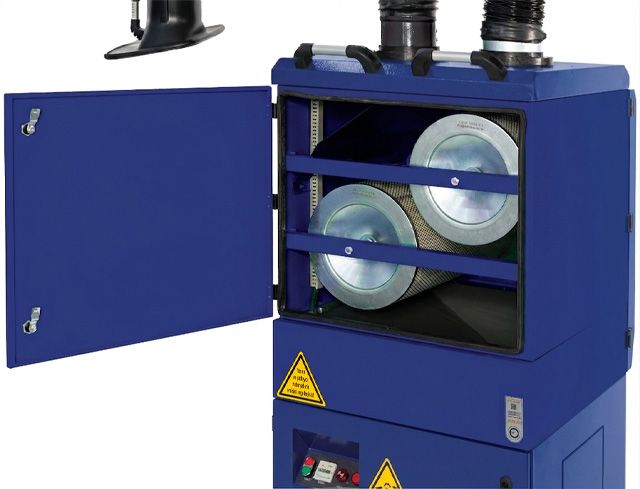

- Twin filters for increased dust/fume collection capacity
- Cleanable filter for longer filter life & reduced operating costs
- Automatic filter cleaning (requires unit to be connected to compressed air supply)
- Special spark deflector virtually eliminates fire risk
- With: working hour counter, filter fullness indicator, malfunction warning, special dust collection bin
- Compact and mobile
APPLICATIONS
- MIG welding
- Flux-Core (FCAW) welding
- TIG welding
- Plasma Cutting
- Grinding
- Arc Gouging
- Suitable for high-fume applications (eg some flux-core wires), due to auto cleaning function
- NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour***
FEATURES
- Cleanable cartridge filter for extended filter life & significantly lower operating costs vs traditional box filters
- Automatic filter cleaning saves operator down-time (cleaning cycle activates when unit is switched off and/or if airflow drop is detected)
- Special spark deflection / impact plate shields the filter from sparks & coarse particles (redirecting them to the dust collection bin), significantly reducing the risk of burnout / fire**, and further increasing filter life
- Cleanable filter provides consistent air flow rate (minimal drop in suction power) over the life of the filter

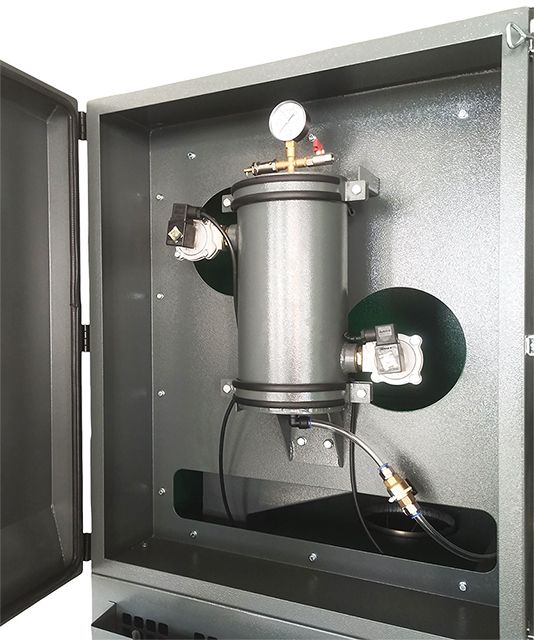

- ‘Pulse’ cleaning system (accumulates then releases a burst of compressed air) maintains better filter condition, and further extends filter life
- Large 28m² filter surface area & nanofiber structure provide high filtration efficiency and long life

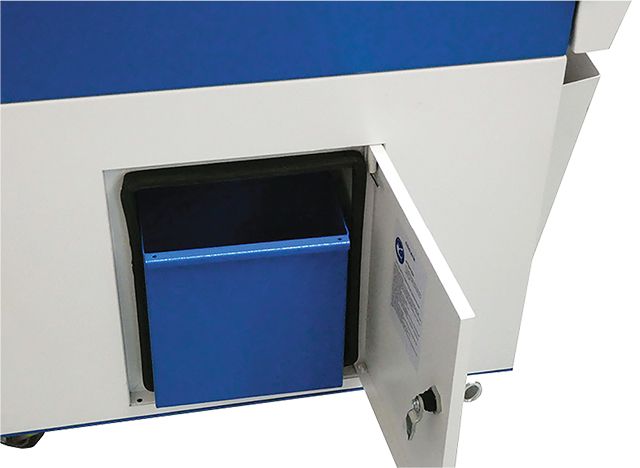

- Unique drawer/bin allows safe removal of dust (ejected from filter cleaning etc) with minimal disturbance, & can be accessed/used when machine is running to prevent down-time
- Exhaust airflow is directed upwards & away from the floor/ground, for minimal disturbance of dust in surrounding environment
- High extraction performance (max air flow: 3,500m³ / hour)
- Compact and mobile
- Ergonomic design with easy access to all functions & replacement filters
- Patented dust collection system
- Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
- Durable hose material resist wear and high temperatures
- Lightweight and durable suction hood catches particles with a large inlet
SPECIFICATIONS
- Power supply: 3-phase 415V
- Power plug required: 415V ≥10A, plug not included****
- Dimensions (mm): L720 x W785 x H1480
- Weight: ~200kg
- Motor size: 2.2kw
- Max air flow: 3,500m³ / hour
- Air flow at suction point: 1,600m³ / hour per arm
- Filter surface area: 28m² (2 x 14m²)
- Filter cleaning: Automatic - requires unit to be connected to compressed air supply.
- Noise level: 74 dBA
- Sound insulation: Acoustic sponge
- Body material: Galvanised steel
- Fan: Aluminium
- Air supply pressure required: 3-4 bar / 300-400 kPa / 40-60 psi
- Air supply flow required: Because air is gradually accumulated in a reservoir inside the AllClear unit, air compressor flow (LPM/CFM) capacity is not critical
OPTIONAL ACCESSORES & COMMON SPARE PARTS
- Main cartridge filter standard F9 (91990116)
- Optional HEPA (high efficiency) H13 main cartridge filter (91990118)
- Optional Carbon filter for odour reduction (91990122)
*Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
**Regular maintenance must be carried out, and all warnings and instructions provided in user manual and on the unit must be followed, for ongoing safe use and prevention of fire hazards. Poor maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
***Aluminium dust, including grinding dust, can be explosive when airborne, and for this reason, fume extractors and downdraft tables should not be used for extraction of aluminium grinding dust (this does not apply to aluminium welding fumes, which can be safely extracted). Oil mist and gases can also cause explosion. Water vapour will damage the filter.
****Power plug not included. Requires 415V plug, with amperage 10A or higher. To ensure correct rotation/direction of extractor fan/motor, the plug wiring 'phase rotation' has to match the wiring at the premises/facility of use (phase rotation wiring of any 3-phase circuit can vary from one facility to another). Plug should be fitted by a qualified electrician on the premises.
