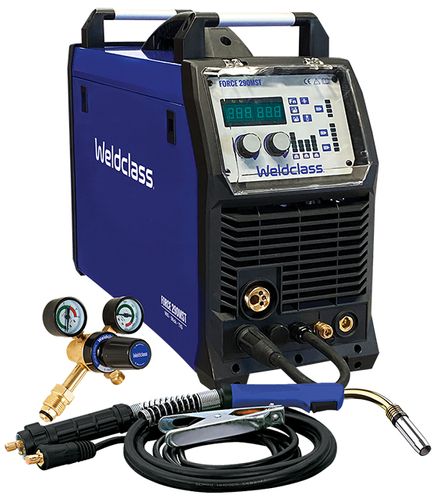

MIG / Stick / TIG Welder - FORCE 290MST*
The Force 290MST* offers unbeatable grunt from single-phase power, ideal for use where higher output is desired but 3-phase power supply is not available. With a maximum output of 290A @ 55% there's plenty of power to tackle production jobs with wires up to 1.2mm. Available as a stand-alone compact / portable machine, or can be optioned with the WF114 separate wire feeder unit either with initial purchase or as an add-on later if/when required. Features include: Easy-to-use controls (synergic or manual), 4-roll geared drive system, Job save, Spool Gun ready, and more. See below for package options.
*Also known as Weldforce 290MST - read more.
View online User Guide
FUNCTIONS
> MIG (Gas / Gasless)
> Stick / MMA
> TIG (DC Lift-Arc)
KEY FEATURES
> Industry-first 7-year warranty*

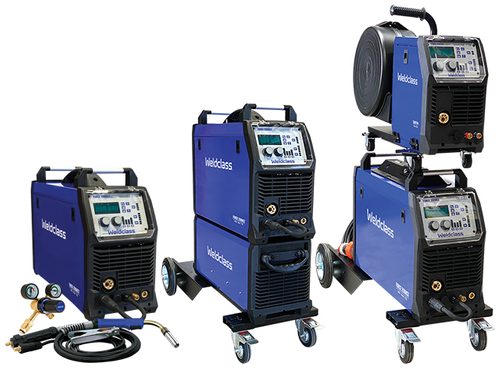

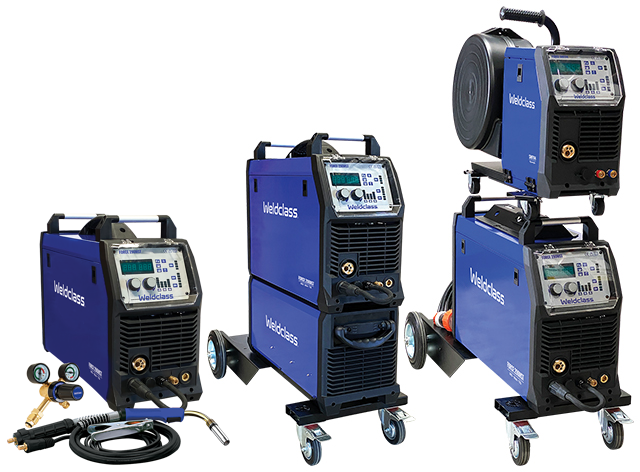

> Dual-Purpose Power Source Technology allows the 290MST to be used as a stand-alone compact / portable unit, or fitted with separate wire feeder unit
> Max MIG output 290A @ 55% duty cycle
> Dual Input Modes to allow use with either 240V 15A plug (fitted) or 240V 32A plug (optional)**
> Manual or Synergic MIG controls (enter material type & thickness and machine will set parameters automatically)
> Job Save - store custom settings for up to 20 jobs
> Geared 4-Roll Wire Drive System - for super reliable wire feeding
> Takes 5kg (D200mm) or 15kg (D300mm)spools
> Spool Gun Ready
> Generator Compatible - min 15kva, ideal 20+kva
> MIG functions & adjustments include: Inductance, Soft Start, Burnback, Pre-Gas Time, Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time
> Stick/MMA functions & adjustments include: Hot-Start %, Arc-Force %
> TIG functions & adjustments include: Trigger & Remote Amperage Control on the the torch, Post-Gas Time, Slope-Up Time
APPLICATION & CAPABILITY INFO
> MIG welding <290A with solid mild steel (0.8-1.2mm), gasless (0.8-1.2mm), flux-cored with gas (1.2mm), stainless-steel (0.8-1.2mm), aluminium (0.9-1.2mm), & bronze/brazing (0.8-1.2mm) wires
> Stick/MMA welding <270A with most types of common electrodes (2.0-4.0mm), including steel, stainless-steel, hardfacing & more
> TIG welding <290A (DC lift-arc) of steel, stainless, copper & chrome molly up to 5-6mm max thickness (NOT suitable for TIG welding of aluminium)
INCLUDES:
> MIG Torch 4m BZL 36
> Earth Lead 4m
> Gas Regulator
> Driver Rollers for 0.9/1.2mm steel/solid wires & 0.9/1.2mm flux-cored/gasless wires
> Power Input Lead (4mm2) with heavy-duty 240V 15A plug fitted**

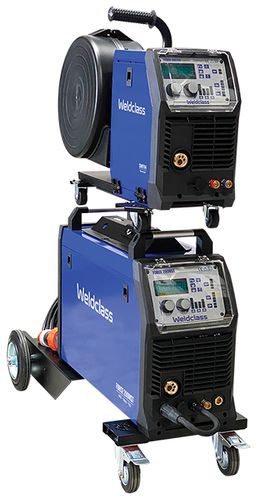

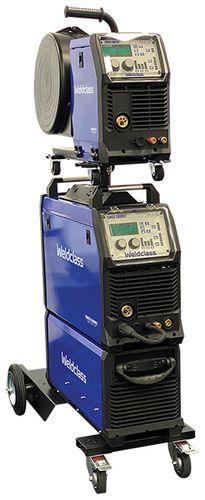

> Separate Wire Feeder Packages include SWF114 wire feeder unit with 8m interconnecting cables
OPTIONAL ACCESSORIES:
> Spool Gun BZL 25 8m (part no WC-06203)
> TIG Torch #17 4m with Remote Control (part no WC-06234)
> Stick welding lead (# WC-06233)
> MIG Torch Spares (BZL 36)
> Drive Rollers
RELATED INFO & ARTICLES
Warranty Registration
What is an Inverter Welder (or plasma cutter)? About Inverter technology
What is Duty Cycle & How is it Calculated?
What is MMA (stick) welding? About the MMA process
MMA (Stick) Welding: What is Hot Start, Arc Force & Anti-Stick?
What is TIG welding? About the TIG process
TIG Welding: What is Scratch-Start, Lift-Arc and HF Ignition?
*Standard warranty 2 years, with extended 7 year warranty available if registered online after purchase, click here for details.
**Factory fitted with heavy-duty 15A plug, for commissioning purposes and use with 15A input mode. To obtain full / maximum output, fit & use with single-phase 32A plug / power supply.
Downloads
User Reviews: Weldclass MIG / Stick / TIG Welder - FORCE 290MST*
Check out reviews and comments from other welders and fabricators who use the WELDCLASS MIG / Stick / TIG Welder - FORCE 290MST*.
Submit a Review and WIN Free Welding Gear!
Used this product before? We would love to get your comments! Submit your review here
************************************
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Very Good
12/10/23 15:55
Bill - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Great machine! I have been running the machine for around a month now and so far it has been excellent, the machine comes with very heavy duty consumables. I have switched out the torch for a binzel branded torch (just my preference), and i am using the machine to run 1.2m dual shield flux core. The machine runs it like a champ, you can run in in synergic mode for dualshield and it does it perfectly. Dont stuff around with the 15 amp plug, go straight to the 32amp plug. I also have Everlast machines as well, there awesome, this is awesome. I should have bought the separate wire feeder so i could have dualshield on one gun and plain wire on the other. The only feed back i have for weldclass, include the v groove rollers in 1.2 in the pack with the welder. Apart from that, bloody awesome, you will not regret it.
04/07/23 11:45
Linton - QLD
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Haven’t used it yet as only picked it up yesterday. Done my research and it’s got the best duty cycle for a single phase machine I could find. The 7 year warranty was the deciding factor in the purchase as I’ve only used weld class wire and never owned a weld class machine . Interesting times ahead
01/06/23 1:43 PM
Troy - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments: Cant Wait To Use My New Machine
20/04/23 11:39 AM
Related Products
-
Now available with 7-year warranty.
The Force 255MST* delivers an impressive 250A @ 35% output, plus a host of impressive features to make your job easier. Work in manual mode, or synergic (select the material and thickness, and the machine takes care of the settings). PFC technology means the 255MST is; extremely power efficient, delivers higher duty cycle, can be used with long extension leads (up to 100m) and is a great choice for use with generators where required. Stick/MMA & lift-TIG capability, job memory, 4-roll geared drive system, fan-on-demand to reduce dust intake, spool gun ready, advanced Stick and TIG functions... and a stack of other features too numerous list here! Comes with 4m MIG torch, 2-stage gas-saving regulator, full set of drive rollers for gas, gasless & aluminium wire, 4m earth and stick leads, 15A plug fitted, and cable strap system. Maximum recommended MIG welding capacity of 12mm (mild steel).
*Also known as Weldforce 255MST - read more. -
Welding lead / cable assemblies - including earth leads and electrode holder leads (work leads) to suit a range of different welders. Pre-assembled, ready to plug in and weld. Made with high-quality double-insulated cable and heavy-duty accessories, including earth clamps with solid brass jaws. Available as individual earth lead to suit all types of welders (including MIG, TIG & Stick), and individual electrode holder leads for stick welders.
-

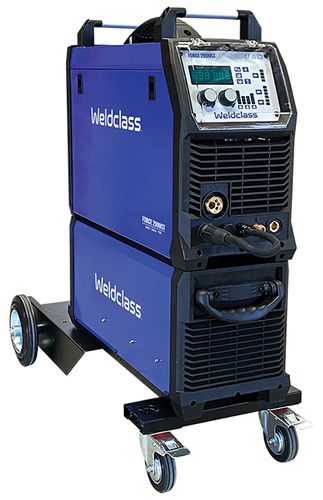

Trolley & base options to suit Weldclass industrial MIG welders, including 255MST, 290MST, 350MST & 395MST
