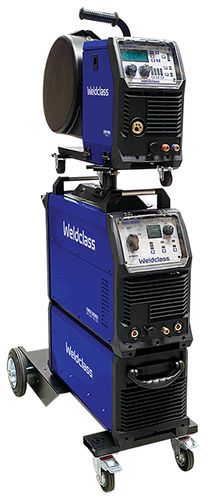

MIG / Stick / TIG Welder - FORCE 395MST* Pulse
With an output of 400A @ 60% and single or double pulse MIG functions, the Force 395MST* is not your average workhorse. MIG, Pulse MIG, DC TIG and Stick/MMA functions. Features include: Straightforward & easy-to-use controls (synergic or manual), 4-roll geared drive system, Job save, and more. Comes with 4m MIG torch, SWF106 wire feeder, long 10m and short 800mm interconnecting lead sets, 2-stage gas-saving regulator, 6m earth lead.
*Also known as Weldforce 395MST - read more.
View online User Guide
FUNCTIONS
> MIG (Gas / Gasless)
> Easy-Pulse MIG (single or double pulse modes)
> Stick / MMA
> TIG (DC Lift-Arc)
KEY FEATURES:
> Industry-first 7-year warranty*
> 400A max MIG output @ 60% duty cycle
> Single-Pulse and Double-Pulse MIG functions
> Manual or Synergic MIG controls (enter material type & thickness and machine will set parameters automatically)
> Job Save - store custom settings for up to 20 jobs
> Geared 4-Roll Wire Drive System - for super reliable wirefeeding
> Heavy-duty interconnecting cables with 50mm2 cable to deliver genuine 400A output from the wire feeder
> Takes 5kg (D200mm) or 15kg (D300mm) spools
> Spool Gun Ready
> MIG functions & adjustments include: Inductance, Soft-Start, Burnback, Pre-Gas Time, Post-Gas Time, 2T/4T Trigger, Spot/Stitch Time
> Additional PULSE MIG functions include: Arc length, Frequency (double pulse), and Balance (double pulse)
> Stick/MMA functions & adjustments include: Hot-Start %, Arc-Force %
> TIG functions & adjustments include: Trigger & Remote Amperage Control on the torch, Post-Gas Time, Slope-Up Time
> Generator Compatible - min 35kva
INCLUDES:
> MIG Torch 4m BZL 36
> Earth Lead H/Duty 6m
> Gas Regulator
> Long 10m interconnecting cable - use when wire feeder is used as a 'traveller'
> Short 800mm interconnecting cable set - use when wire feeder is positioned on top of power source
> Driver Roller for 0.9/1.2mm steel/solid wire
OPTIONAL ACCESSORIES:

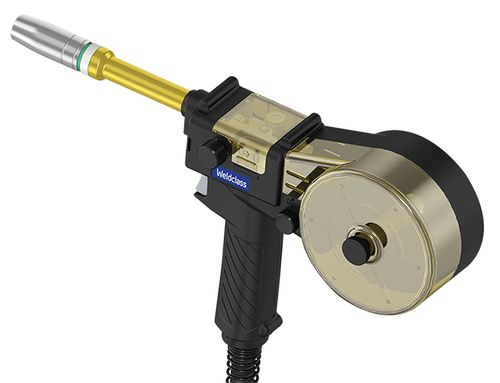

> Spool Gun BZL 25 8m (part no WC-06203)

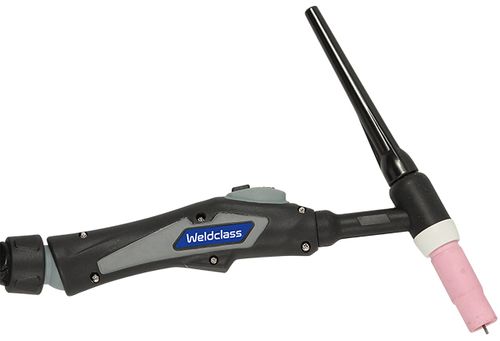

> TIG Torch #17 4m with Remote Control (part no WC-06234)
> Stick welding lead (# WC-06233)
> MIG Torch Spares (BZL 36)
> Drive Rollers
RELATED INFO & ARTICLES
Warranty Registration
What is an Inverter Welder (or plasma cutter)? About Inverter technology
What is Duty Cycle & How is it Calculated?
What is MMA (stick) welding? About the MMA process
MMA (Stick) Welding: What is Hot Start, Arc Force & Anti-Stick?
What is TIG welding? About the TIG process
TIG Welding: What is Scratch-Start, Lift-Arc and HF Ignition?
*Standard warranty 2 years, with extended 7 year warranty available, if registered online after purchase at Weldclass.com.au/Warranty Registration
Downloads
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments:
Really good product does the job I need never has any problems really love it good product
10/01/24 16:17
Trent - NT
How likely would you be to recommend this product to a friend? (10 = very likely) = 8
Comments: Does everything it says
23/09/23 11:41
Linmac - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments:
Very happy, does a clean finish on aluminium welding 13/09/23 16:27
Riccardo - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments:
Great machine. A pleasure to use.
07/07/23 14:23
Chris - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 8
Comments: good so far
16/05/23 2:15 PM
Daniel - QLD
How likely would you be to recommend this product to a friend? (10 = very likely) = 10 Comments:
Awesome machine double pulse is awesome after a few tweaks
26/04/23 7:44 PM
Chris - NSW
How likely would you be to recommend this product to a friend? (10 = very likely) = 10
Comments: Great
24/03/23 10:21 AM
Rizalito - NT
How likely would you be to recommend this product to a friend? (10 = very likely) = 9 Comments:
Satisfied of duty cycle.good machine
20/01/23 9:34 AM
Related Products
-

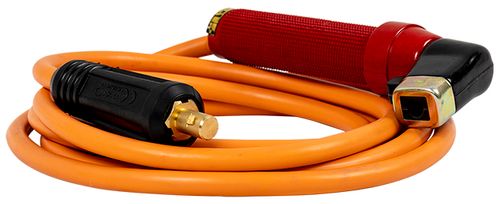

Welding lead / cable assemblies - including earth leads and electrode holder leads (work leads) to suit a range of different welders. Pre-assembled, ready to plug in and weld. Made with high-quality double-insulated cable and heavy-duty accessories, including earth clamps with solid brass jaws. Available as individual earth lead to suit all types of welders (including MIG, TIG & Stick), and individual electrode holder leads for stick welders.
-
Now available with 7-year warranty.

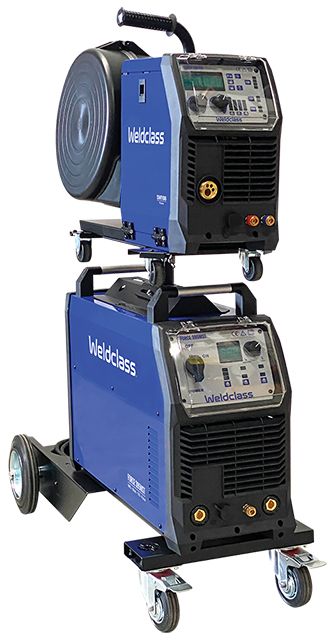

The Force 350MST* offers 3-phase power with easy-to-use controls and flexible package options. The power source has it's own wire feed system to allow use as: a) a stand-alone compact / portable machine, or b) together with the SWF114 separate wire feeder unit, which can be included with initial purchase or as an add-on later if/when required. With an output of 350A @ 60%, there's plenty of grunt to tackle production jobs with wires up to 1.2mm. Features include: Straightforward controls (synergic or manual), 4-roll geared drive system, Job save, Spool Gun ready, and more. See below for package options.
