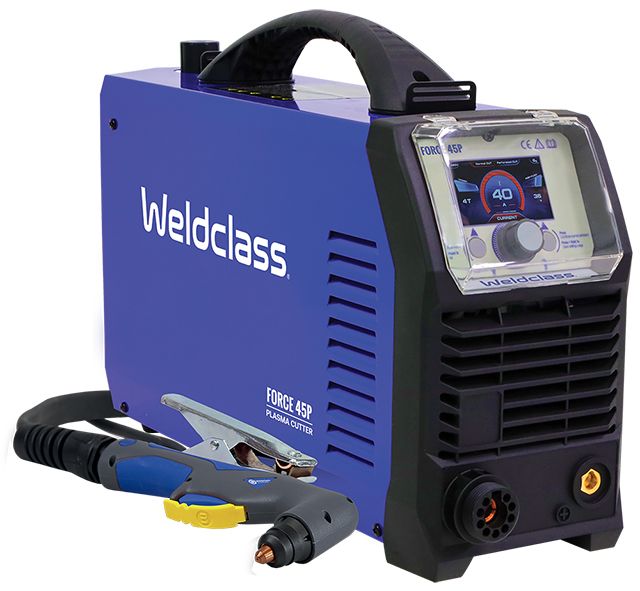

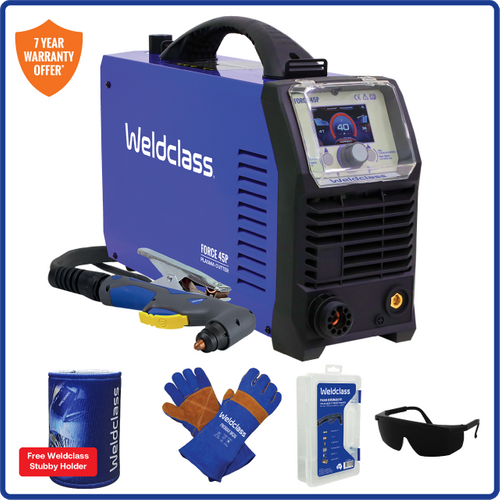

Plasma Cutter - FORCE 45P*

Now available with 7-year warranty.
With a cut capacity of 20mm (clean cutting of mild steel), severance capacity of 25mm, and 45% duty cycle at maximum output, the Force 45P* is one of the highest performing single-phase plasma cutters on the market. Weighing only 8kg and fitted with a 15A 240V plug, it's also super portable and versatile.
PFC technology means the 45P is extremely power efficient, delivering higher duty cycle for longer cuts and higher productivity, even on heavier section material. With PFC, the 45P can be used on long extension leads (up to 100m) and is a great choice for operation on generator power, where required.
Features a very high-quality 6m torch with 'Euro' style connection, Air regulator with nitto fitting, shoulder strap & much more! For maximum parts life and cutting performance, we highly recommend the optional Platinum Z-20 Air Filter/Dryer
*Also known as Cutforce 45P- read more.
Image Image Part No. Description Retail Incl. GST Where to Buy Enquiry Qty
N/A
Z20-45P

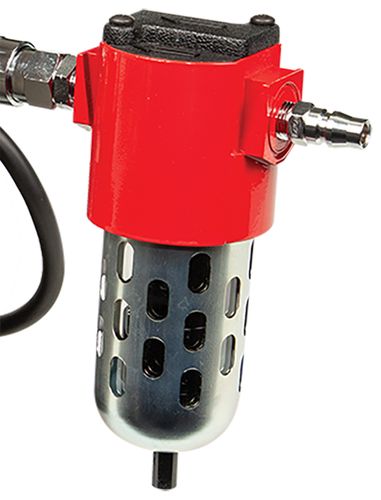

Optional High-Purity Air Filter (enhances performance & increases consumable parts life) - CLICK HERE to view
N/A
Z20-45P
Optional High-Purity Air Filter (enhances performance & increases consumable parts life) - CLICK HERE to view
Z20-45P
DUMMY ITEM FOR WEB PURPOSES ONLY
PARTSKIT-45P

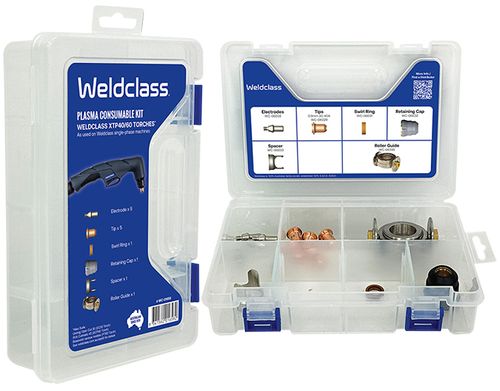

Optional Torch Parts/Consumables Kit with Roller Guide - CLICK HERE to view
DUMMY ITEM FOR WEB PURPOSES ONLY
PARTSKIT-45P
Optional Torch Parts/Consumables Kit with Roller Guide - CLICK HERE to view
PARTSKIT-45P
N/A
TROLLEY-45P

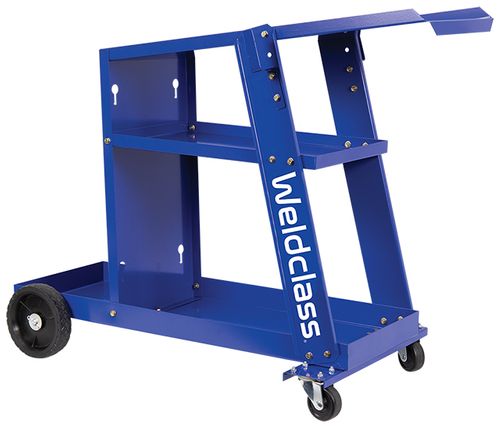

Optional Trolley - CLICK HERE to view
N/A
TROLLEY-45P
Optional Trolley - CLICK HERE to view
TROLLEY-45P
Also Known As:
WELDFORCE PLASMA / Replacement for CF-40P / CF-45P
CF-06176 137.05

FUNCTIONS
> Plasma Cutter

AT A GLANCE:
> 40A @ 45% max output
> Clean Cut up to 20mm mild steel, 18mm stainless-steel & 14mm aluminium
> Severance Cut up to 25mm mild steel, 22mm stainless-steeel & 20mm aluminium
> Fitted with 15A 240V plug

KEY FEATURES:
> Industry-first 7-year warranty*
> Weighs only 8kg - compact, robust & lightweight
> Power Factor Correction (PFC) - reduced power draw, increased duty-cycle, ideal for long leads & generators
> High Quality Plasma Torch with Euro Connection
> Reliable Pilot Arc Ignition - non-HF avoids EMF interference
> Generator Friendly - min 8kva, ideal 10+kva
> Intelligent Protection & Warning System - prevents costly torch damage
> Stressed-Tested - to 440V & over-specified componentry for reliability
> Perforated Plate / Expanded Mesh Cutting Mode

INCLUDES:
> Plasma Torch 6m with Torch Parts Kit
> Air Regulator with filter & Nitto style air fitting
> Earth Lead 4m
> Shoulder Strap
> Cable Strap
> Long Power Input Lead 3m

COMMON SPARE PARTS:
> Torch Consumable Spares (XTP-40/60 Torch)
> PLATINUM Z-20 High-Performance Air Filter (Highly Recommended for optimum cutting performance and longer parts life)
> T100 Welding Trolley (part no WC-06235)

AIR SUPPLY REQUIREMENTS:
> Air Compressor capacity: Min 120L/min (4.5cfm) Free Air Delivery

RELATED INFO & ARTICLES
Warranty Registration
Power plugs on single-phase Welders: Your questions answered
What is the best Air Filter for Plasma Cutting
What is an Inverter Welder (or plasma cutter)? About Inverter technology
What is Duty Cycle & How is it Calculated?
Using Generators to power inverter welders & plasma cutters
What is an Inverter Welder (or plasma cutter)? About Inverter technology
What is Duty Cycle & How is it Calculated?
Using Generators to power inverter welders & plasma cutters

*Standard warranty 2 years, with extended 7 year warranty available if registered online after purchase, click here for details.
