Plasma Torch & Parts - Weldclass XTP40/60

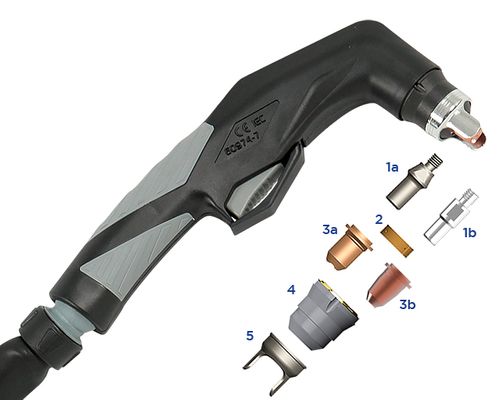

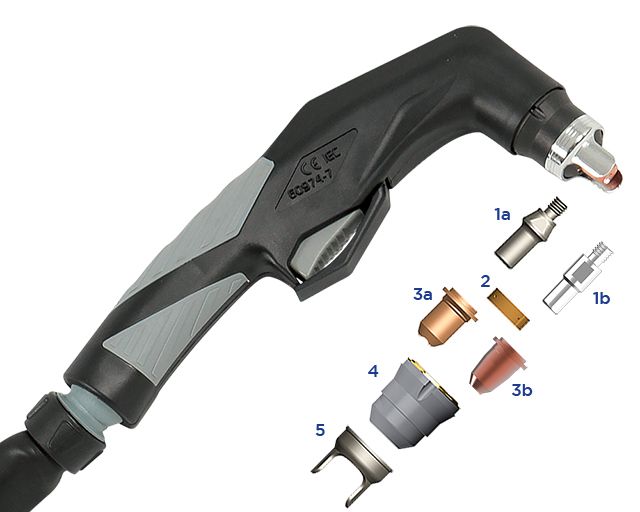

Plasma torch and consumable parts to suit Weldclass XTP series torches as fitted to 40P, 41PA, 43P & 45P plasma cutters, and various other brands and models of torches/machines including; Unimig Viper Cut 30, Cigweld CutSkill 35/45/60/EasyCut, WIA Cutmatic 45, Lincoln Invertec PC210 and more. See details below.
Image Image Part No. Description Retail Incl. GST Where to Buy Enquiry Qty

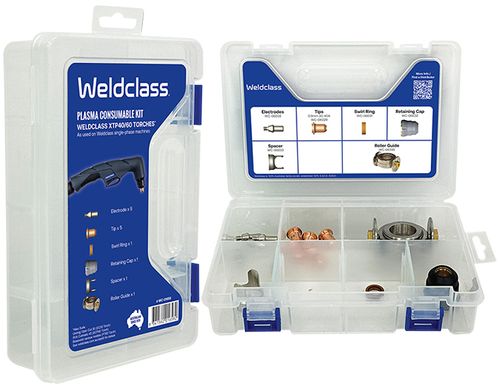

Plasma Parts Kit  With Storage Box XTP40/60 Weldclass
WC-01658

  Parts Kit with storage box & Roller Guide
Suits: Weldclass 40P/41PA/43P/45P, Unimig Viper Cut 30, WIA Cutmatic 45, Lincoln Invertec PC210, Bossweld various models (PT60 Torch)
Electrodes WC-06028 x 5
Tips 30-45A WC-06029 x 5
Swirl Ring WC-06031 x 1
Retaining Cap WC-06032 x 1
Spacer WC-06033 x 1
Roller Guide x 1

Retail Incl. GST: $209.00
Plasma Parts Kit  With Storage Box XTP40/60 Weldclass
WC-01658

  Parts Kit with storage box & Roller Guide
Suits: Weldclass 40P/41PA/43P/45P, Unimig Viper Cut 30, WIA Cutmatic 45, Lincoln Invertec PC210, Bossweld various models (PT60 Torch)
Electrodes WC-06028 x 5
Tips 30-45A WC-06029 x 5
Swirl Ring WC-06031 x 1
Retaining Cap WC-06032 x 1
Spacer WC-06033 x 1
Roller Guide x 1

WC-01658
$209.00

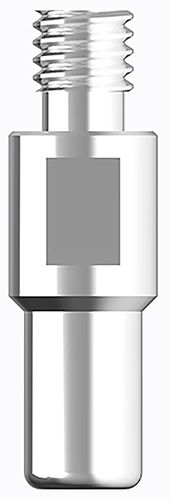

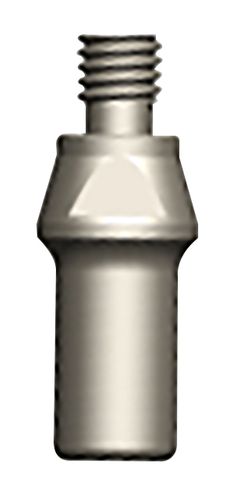

Plasma Electrode XTP40/60 Pk5 Suit 40P/45P/43P/41PA Weldclass
WC-06028

 1a) Electrode Pk5
Suits:
Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2504)
WIA Cutmatic 45 (ref SCP2504)
Lincoln Invertec PC210 / LC25 Torch (ref KP2842-1)

Plasma Electrode XTP40/60 Pk5 Suit 40P/45P/43P/41PA Weldclass
WC-06028

 1a) Electrode Pk5
Suits:
Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2504)
WIA Cutmatic 45 (ref SCP2504)
Lincoln Invertec PC210 / LC25 Torch (ref KP2842-1)

WC-06028
Plasma Electrode Pk5 Suit Cigweld Cutskill 35/45/60 Pk5 Weldclass
WC-06457

 1b) Electrode Pk5
Suits Cigweld CutSkill 35/45/60/EasyCut (ref CSP337003)
Note: Only suits these Cigweld torches/machines, does not suit any other brands/models

Plasma Electrode Pk5 Suit Cigweld Cutskill 35/45/60 Pk5 Weldclass
WC-06457

 1b) Electrode Pk5
Suits Cigweld CutSkill 35/45/60/EasyCut (ref CSP337003)
Note: Only suits these Cigweld torches/machines, does not suit any other brands/models

WC-06457

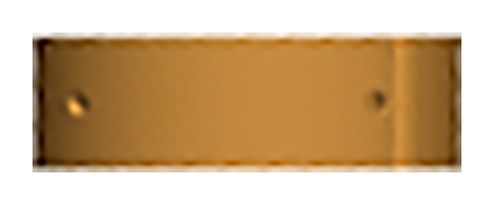

Plasma Swirl Ring XTP40/60 Pk1 Suit 40P/41PA/43P/45P Weldclass
WC-06031

 2) Swirl Ring Pk1
Suits:
Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch
Cigweld CutSkill 35/45/60/EasyCut (ref CSP337007)
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2506)
WIA Cutmatic 45 (ref SCP2506)
Lincoln Invertec PC210 / LC25 Torch (ref KP2842-4)
Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.60028)

Plasma Swirl Ring XTP40/60 Pk1 Suit 40P/41PA/43P/45P Weldclass
WC-06031

 2) Swirl Ring Pk1
Suits:
Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch
Cigweld CutSkill 35/45/60/EasyCut (ref CSP337007)
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2506)
WIA Cutmatic 45 (ref SCP2506)
Lincoln Invertec PC210 / LC25 Torch (ref KP2842-4)
Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.60028)

WC-06031

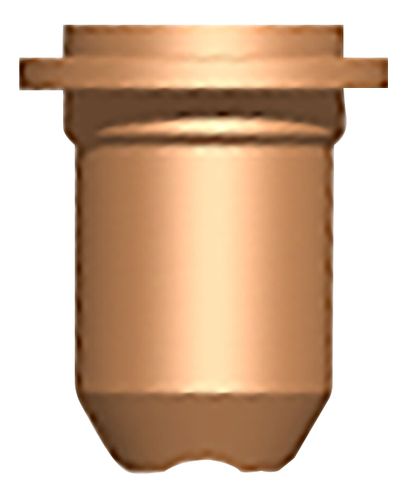

Plasma Tip 0.9mm 30-40A XTP40/60 Pk5 Suit 40P/45P/43P/41PA Weldclass
WC-06029

 3a) Tip 0.9mm 30-40A (Stand-off or Drag) Pk5
Suits:
Weldclass Cutforce 40P/41PA/43P/45P / XTP 40/60 Torch
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2520-09)
WIA Cutmatic 45 (ref SCP2524-10, SCP2524-08)
Lincoln Invertec PC210 (ref KP2842-2)
Note: 0.9mm tip can be used in place of 0.8mm or 1.0mm in most 30-40A applications

Plasma Tip 0.9mm 30-40A XTP40/60 Pk5 Suit 40P/45P/43P/41PA Weldclass
WC-06029

 3a) Tip 0.9mm 30-40A (Stand-off or Drag) Pk5
Suits:
Weldclass Cutforce 40P/41PA/43P/45P / XTP 40/60 Torch
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2520-09)
WIA Cutmatic 45 (ref SCP2524-10, SCP2524-08)
Lincoln Invertec PC210 (ref KP2842-2)
Note: 0.9mm tip can be used in place of 0.8mm or 1.0mm in most 30-40A applications

WC-06029
Plasma Tip 0.9mm 30-40A Pk5 Suit Cigweld Cutskill 35/45/60 Weldclass
WC-06459

 3b) Tip 0.9mm 30-40A Pk5
Suits Cigweld CutSkill 35/45/60/EasyCut (ref CSP337001, CSP337002)
Note: 0.9mm tip can be used in place of 0.8mm in most 30-40A applications

Plasma Tip 0.9mm 30-40A Pk5 Suit Cigweld Cutskill 35/45/60 Weldclass
WC-06459

 3b) Tip 0.9mm 30-40A Pk5
Suits Cigweld CutSkill 35/45/60/EasyCut (ref CSP337001, CSP337002)
Note: 0.9mm tip can be used in place of 0.8mm in most 30-40A applications

WC-06459

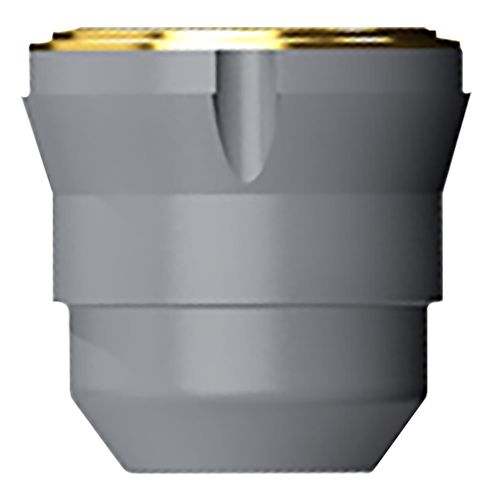

Plasma Cap XTP40/60 6-Hole Std Pk1 Suit 40P/45P/43P Weldclass
WC-06032

 4a) Retaining Cap 6-Hole Std Pk1
Suits:
Weldclass 40P/43P/45P / XTP 40/60 Torch
Cigweld CutSkill 35/45/60/EasyCut (ref CSP337005)
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2530)
WIA Cutmatic 45 (ref SCP2530-6)
Lincoln Invertec PC210 / LC25 Torch (ref KP2842-3)
Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.60389)

Plasma Cap XTP40/60 6-Hole Std Pk1 Suit 40P/45P/43P Weldclass
WC-06032

 4a) Retaining Cap 6-Hole Std Pk1
Suits:
Weldclass 40P/43P/45P / XTP 40/60 Torch
Cigweld CutSkill 35/45/60/EasyCut (ref CSP337005)
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2530)
WIA Cutmatic 45 (ref SCP2530-6)
Lincoln Invertec PC210 / LC25 Torch (ref KP2842-3)
Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.60389)

WC-06032
Plasma Cap XTP40/60 4-Hole Pk1 Suit 41PA Weldclass
WC-06458

 4b) Retaining Cap with 4 air/port holes Pk1
Suits:
Weldclass 41PA machine with in-built air compressor

Plasma Cap XTP40/60 4-Hole Pk1 Suit 41PA Weldclass
WC-06458

 4b) Retaining Cap with 4 air/port holes Pk1
Suits:
Weldclass 41PA machine with in-built air compressor

WC-06458

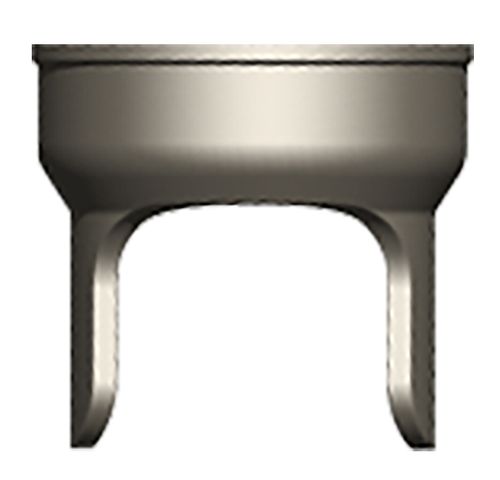

Plasma Spacer XTP40/60 Pk1 Suit 40P/45P Weldclass
WC-06033

 5) Spacer Pk1
Suits:
Weldclass 40P/45P / XTP 40 Torch
Cigweld CutSkill 35/45/60 (ref CSP337004)
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2540)
WIA Cutmatic 45 (ref SCP2540)
Lincoln Invertec PC210 / LC25 Torch (ref KP2842-5)
Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.60432)

Plasma Spacer XTP40/60 Pk1 Suit 40P/45P Weldclass
WC-06033

 5) Spacer Pk1
Suits:
Weldclass 40P/45P / XTP 40 Torch
Cigweld CutSkill 35/45/60 (ref CSP337004)
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2540)
WIA Cutmatic 45 (ref SCP2540)
Lincoln Invertec PC210 / LC25 Torch (ref KP2842-5)
Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.60432)

WC-06033

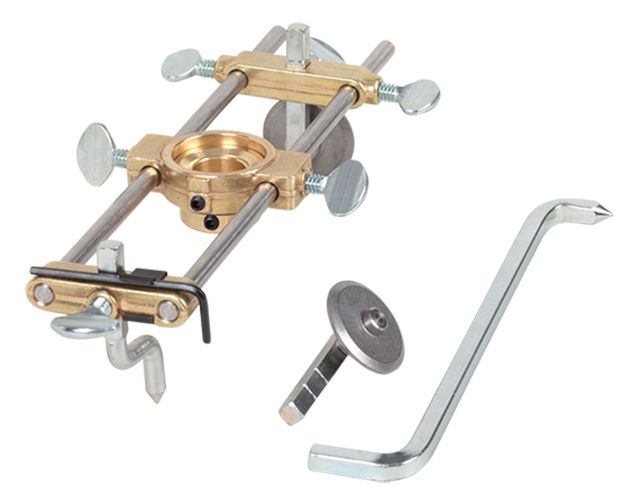

Plasma Circle Guide Suit 40P/41PA/43P/45P/XTP Weldclass
TJ1202R
Circle Guide, cuts circles 38-700mm diameter
Suits:
Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch
Cigweld CutSkill 35/45/60/EasyCut (ref CSP337041)
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2550)
WIA Cutmatic 45 (ref SCP2550)
Lincoln Invertec PC210 / LC25 Torch
Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.51866)
Plasma Circle Guide Suit 40P/41PA/43P/45P/XTP Weldclass
TJ1202R
Circle Guide, cuts circles 38-700mm diameter
Suits:
Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch
Cigweld CutSkill 35/45/60/EasyCut (ref CSP337041)
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2550)
WIA Cutmatic 45 (ref SCP2550)
Lincoln Invertec PC210 / LC25 Torch
Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.51866)
TJ1202R

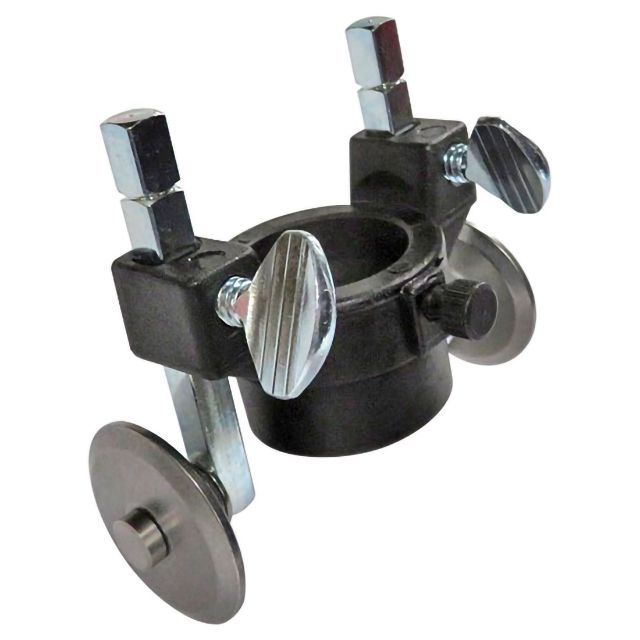

Plasma Roller Guide Suit 40P/41PA/43P/45P/XTP Weldclass
TJ1562
Roller Guide
Suits:
Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch
Cigweld CutSkill 35/45/60/EasyCut
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2551)
WIA Cutmatic 45 (ref SCP2551)
Lincoln Invertec PC210 / LC25 Torch
Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.TJ1536)
Plasma Roller Guide Suit 40P/41PA/43P/45P/XTP Weldclass
TJ1562
Roller Guide
Suits:
Weldclass 40P/41PA/43P/45P / XTP 40/60 Torch
Cigweld CutSkill 35/45/60/EasyCut
Unimig Viper Cut 30 / SC30 Torch (ref WGSC2551)
WIA Cutmatic 45 (ref SCP2551)
Lincoln Invertec PC210 / LC25 Torch
Bossweld P60, X-CUT 15.0, X-CUT 30.0 / PT40, PT60 Torch (ref 96.TJ1536)
TJ1562

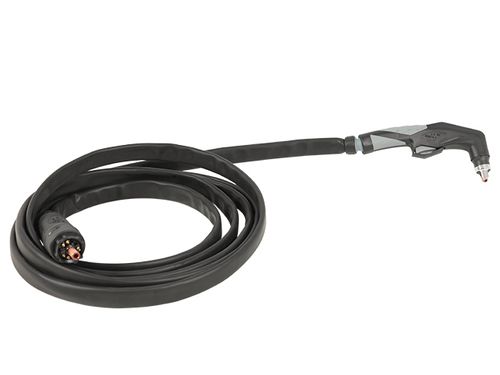

Plasma Torch XTP40 Suit 40P/45P 6M Weldclass
WC-06239
Torch & Cable 6m XTP40 - Suit Weldclass 40P/45P machines
Plasma Torch XTP40 Suit 40P/45P 6M Weldclass
WC-06239
Torch & Cable 6m XTP40 - Suit Weldclass 40P/45P machines
WC-06239

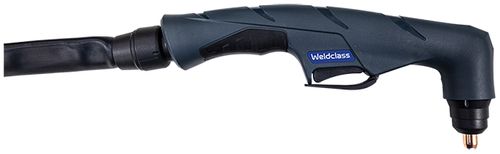

Plasma Torch XTP60 Suit 41PA/43P 6M Weldclass
WC-06292
Torch & Cable 6m XTP60 - Suit Weldclass 41PA, 43P machines
Plasma Torch XTP60 Suit 41PA/43P 6M Weldclass
WC-06292
Torch & Cable 6m XTP60 - Suit Weldclass 41PA, 43P machines
WC-06292
Disclaimer:
The products advertised above are original Weldclass products only. Weldclass is not affiliated in any way with other trade names or brands mentioned above, and any references to these trade names or brands and/or part numbers are for identification purposes only.
WC-06028 101.05

See fact sheet under Downloads tab for full details of compatibility of these parts for Weldclass and other brands of plasma machines/torches.

 Parts to suit XTP40 torch fitted to WELDCLASS Cutforce 40P &  45P machines:

  • WC-06028 Electrode Pk5
  • WC-06031 Swirl Ring
  • WC-06029 Tip 0.9mm 30-40A Pk5
  • WC-06032 Retaining Cap 6-Hole Std
  • WC-06033 Spacer / Stand-Off Guide
  • TJ1562 Roller Guide
  • TJ1202R Circle Guide

 Parts to suit XTP60 torch fitted to WELDCLASS Cutforce 43P  machine:

  • WC-06028 Electrode Pk5
  • WC-06031 Swirl Ring
  • WC-06029 Tip 0.9mm 30-40A Pk5
  • WC-06032 Retaining Cap 6-Hole Std
  • TJ1562 Roller Guide
  • TJ1202R Circle Guide

Note: Spacer / Stand-Off Guide should NOT be used on this machine. The 43P is designed for drag cutting only and will only operate if the tip contacts the workpiece.

 Parts to suit XTP60 torch fitted to WELDCLASS Cutforce 41PA  machine with in-built air compressor:

  • WC-06028 Electrode Pk5
  • WC-06031 Swirl Ring
  • WC-06029 Tip 0.9mm 30-40A Pk5
  • WC-06458 Retaining Cap Special 4-Hole Type*
  • TJ1562 Roller Guide
  • TJ1202R Circle Guide

*Retaining cap with 4 port holes (rather than the standard 6-hole design) must be used on the 41PA machine, as it is specifically designed for use with in-built air compressor, which operates at lower air flow rate & pressure (vs machines that use standard external compressed air supply).

Note: Spacer / Stand-Off Guide should NOT be used on this machine. The 43P is designed for drag cutting only and will only operate if the tip contacts the workpiece.

 Parts to suit torch fitted to CIGWELD CutSkill 45/35/60 &  EasyCut machines:

  • WC-06457 Electrode Pk5 (cross ref CSP337003)
  • WC-06031 Swirl Ring (cross ref CSP337007)
  • WC-06459 Tip 0.9mm 30-40A Pk5 (cross ref CSP337002)
  • WC-06032 Retaining Cap 6-Hole Std (cross ref CSP337005)
  • WC-06033 Spacer / Stand-Off Guide (cross ref CSP337004)
  • TJ1562 Roller Guide
  • TJ1202R Circle Guide

 Parts to suit SC30 torch fitted to UNIMIG Viper Cut 30 machines:

  • WC-06028 Electrode Pk5 (cross ref WGSC2504)
  • WC-06031 Swirl Ring (cross ref WGSC2506)
  • WC-06029 Tip 0.9mm 30-40A Pk5 (cross ref WGSC2520-09)
  • WC-06032 Retaining Cap 6-Hole Std (cross ref WGSC2530)
  • WC-06033 Spacer / Stand-Off Guide (cross ref WGSC2540)
  • TJ1562 Roller Guide (cross ref WGSC2551)
  • TJ1202R Circle Guide (cross ref WGSC2550)

 FAQs:

Q: Are torch heads available for these torches?

A: Weldclass does not supply the torch head as separate parts. This is because ongoing improvements have been made to both the torch and the torch head design over time (to improve reliability and longevity), and heads are not interchangeable across every different batch/version of the torch. We offer complete torches as listed on this page, which also means that the new/replacement torch will carry any design improvements that the manufacturer has implemented to date.

See fact sheet under Downloads tab for full details of compatability of these parts for Weldclass and other brands of plasma machines/torches.

Parts to suit XTP40 torch fitted to WELDCLASS Cutforce 40P & 45P machines:
WC-06028 Electrode Pk5
WC-06031 Swirl Ring
WC-06029 Tip 0.9mm 30-40A Pk5
WC-06032 Retaining Cap 6-Hole Std
WC-06033 Spacer / Stand-Off Guide
TJ1562 Roller Guide
TJ1202R Circle Guide

Parts to suit XTP60 torch fitted to WELDCLASS Cutforce 43P machine:
WC-06028 Electrode Pk5
WC-06031 Swirl Ring
WC-06029 Tip 0.9mm 30-40A Pk5
WC-06032 Retaining Cap 6-Hole Std
TJ1562 Roller Guide
TJ1202R Circle Guide
Note: Spacer / Stand-Off Guide should NOT be used on this machine. The 43P is designed for drag cutting only and will only operate if the tip contacts the work piece.

Parts to suit XTP60 torch fitted to WELDCLASS Cutforce 41PA machine with in-built air compressor:
WC-06028 Electrode Pk5
WC-06031 Swirl Ring
WC-06029 Tip 0.9mm 30-40A Pk5
WC-06458 Retaining Cap Special 4-Hole Type*
TJ1562 Roller Guide
TJ1202R Circle Guide
*Retaining cap with 4 port holes (rather than the standard 6-hole design) must be used on the 41PA machine, as it is specifically designed for use with in-built air compressor, which operates at lower air flow rate & pressure (vs machines that use standard external compressed air supply).
Note: Spacer / Stand-Off Guide should NOT be used on this machine. The 43P is designed for drag cutting only and will only operate if the tip contacts the work piece.

Parts to suit torch fitted to CIGWELD CutSkill 45/35/60 & EasyCut machines:
WC-06457 Electrode Pk5 (cross ref CSP337003)
WC-06031 Swirl Ring (cross ref CSP337007)
WC-06459 Tip 0.9mm 30-40A Pk5 (cross ref CSP337002)
WC-06032 Retaining Cap 6-Hole Std (cross ref CSP337005)
WC-06033 Spacer / Stand-Off Guide (cross ref CSP337004)
TJ1562 Roller Guide
TJ1202R Circle Guide

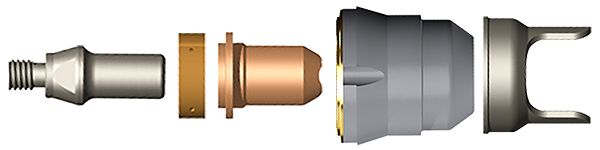

Parts to suit SC30 torch fitted to UNIMIG Viper Cut 30 machines:
WC-06028 Electrode Pk5 (cross ref WGSC2504)
WC-06031 Swirl Ring (cross ref WGSC2506)
WC-06029 Tip 0.9mm 30-40A Pk5 (cross ref WGSC2520-09)
WC-06032 Retaining Cap 6-Hole Std (cross ref WGSC2530)
WC-06033 Spacer / Stand-Off Guide (cross ref WGSC2540)
TJ1562 Roller Guide (cross ref WGSC2551)
TJ1202R Circle Guide (cross ref WGSC2550)

FAQs
Q: Are torch heads available for these torches?
A: Weldclass does not supply the torch head as a separate parts. This is becuase ongoing improvements have been made to both the torch and the torch head design over time (to improve reliability and longevity), and heads are not interchangeable across every different batch/version of the torch. We offer complete torches as listed on this page, which also means that the new/replacement torch will carry any design improvements that the manufacturer has implemented to date.
