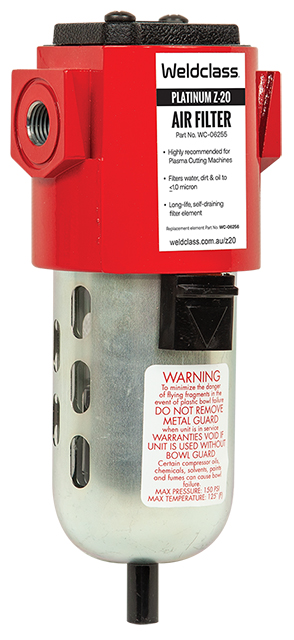

Air Filter - PLATINUM Z-20 High Performance - suit Plasma Cutters

Specially developed for use with Plasma cutting machines, the PLATINUM Z-20 high performance Air Filter is a superior alternative to traditional "roll" type filters. PLATINUM Z-20 will filter water, dust, oil and particles down to 1-micron and is virtually maintenance-free thanks to the self-draining feature and super long-life filter cartridge/element.
Using a Z-20 filter will help to increase plasma consumables life, reduce operating cost, improve cutting performance & reduced the likelihood of torch & machine malfunction.
A highly recommended accessory for all plasma cutters.. & other applications where air quality is critical.
Click here to read why proper air filtration is critical for plasma cutting, and how the PLATINUM Z-20 compares to other filters.

Where to buy

Image Image Part No. Description Unit of Issue Enquiry Qty
AIR FILTER  PLATINUM Z-20 SUIT PLASMA MACHINES WELDCLASS
WC-06255

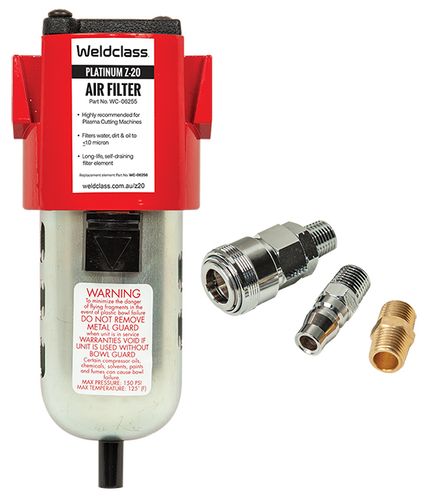

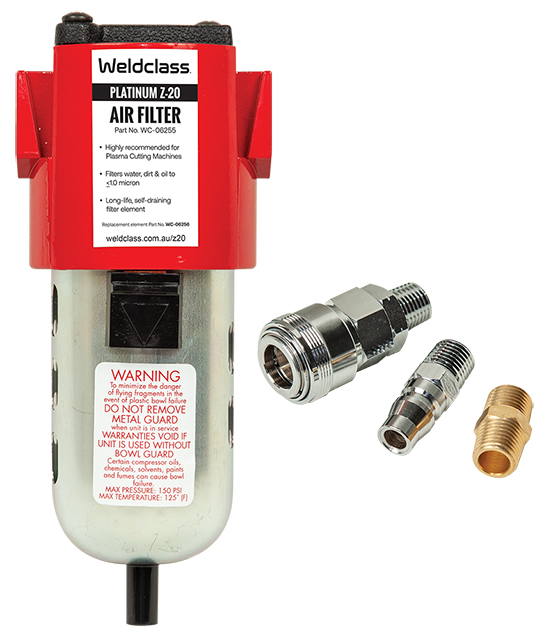

PLATINUM Z-20 Complete Filter Unit - includes Nitto coupler, Nitto plug, 1/4" nipple/joiner
Unit:
EACH
AIR FILTER  PLATINUM Z-20 SUIT PLASMA MACHINES WELDCLASS
WC-06255
PLATINUM Z-20 Complete Filter Unit - includes Nitto coupler, Nitto plug, 1/4" nipple/joiner
WC-06255
EACH
AIR FILTER ELEMENT ONLY PLATINUM Z-20 WELDCLASS
WC-06256

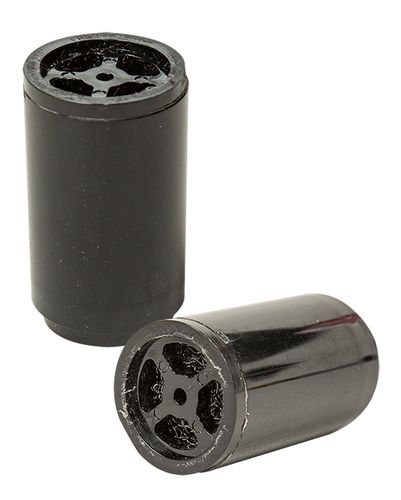

PLATINUM Z-20 Replacement Filter Element
Unit:
EACH
AIR FILTER ELEMENT ONLY PLATINUM Z-20 WELDCLASS
WC-06256
PLATINUM Z-20 Replacement Filter Element
WC-06256
EACH
AIR FILTER MOUNT BRACKET T/S PLATINUM Z-20 WELDCLASS
WC-06257
PLATINUM Z-20 Mounting Bracket (Optional - Use where filter is to be mounted rigidly to a vertical surface)
Unit:
EACH
AIR FILTER MOUNT BRACKET T/S PLATINUM Z-20 WELDCLASS
WC-06257
PLATINUM Z-20 Mounting Bracket (Optional - Use where filter is to be mounted rigidly to a vertical surface)
WC-06257
EACH

WHY USE PLATINUM Z-20 AIR FILTER ?
> Increases Plasma torch parts life & reduces consumable costs
> Improves cutting performance
> Self-draining - engineered for low maintenance, "set and forget"
> Long-life filter cartridge (typical service life of up to 6 months)
> High-performance filtration of water/moisture, dirt and oil particles down to 1-micron

SUPERIOR TO "ROLL" TYPE FILTERS:
> Roll filters require frequent cartridge replacement = ongoing cost
> Z-20 filter cartridge lasts up to 6 months, or even 12+ months in cases of infrequent use = reduced cost
> Roll filters are NOT self draining. If cartridge is not replaced regularly, this can cause issues such as mould, restriction in air flow, etc
> Z-20 is self-draining and maintenance-free = no hassles

WHY USE Z-20 FILTER IN ADDITION TO THE FILTER/REGULATOR THAT CAME WITH MY PLASMA?
> Standard filter/regulators supplied with most modern plasma cutters provide a basic/minimum level of filtration, and typically remove around 50% of water & dirt particles.
> Z-20 filter removes 99.97% of water, dirt & oil particles, significantly improving air quality and delivering the benefits mentioned above

MOUNTING INFORMATION:

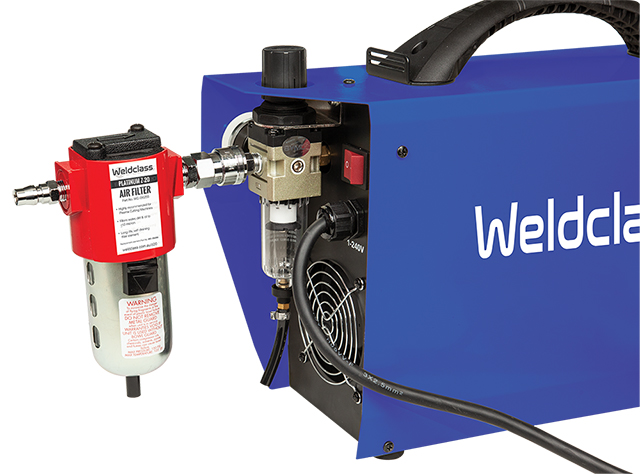

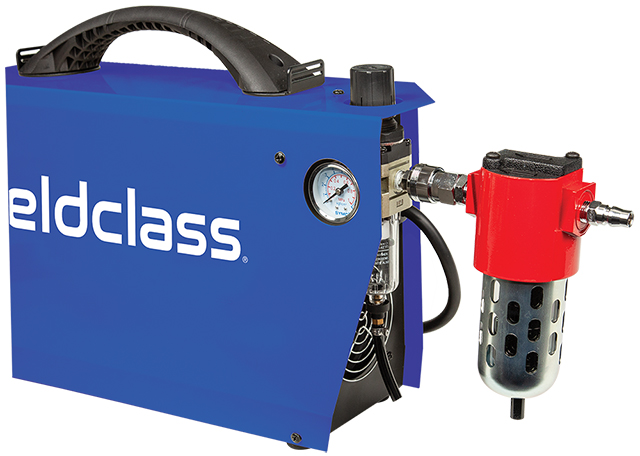

> Supplied with Nitto socket, Nitto plug, and 1/4" nipple/joiner to allow quick "inline" connection to existing air inlet on plasma cutter
> Optional mounting bracket (WC-06257) can be used where filter is required to be mounted rigidly to a vertical surface


Click here to read why proper air filtration is critical for plasma cutting, and how the PLATINUM Z-20 compares to other filters.
