Heating Tips - Oxy/Acetylene

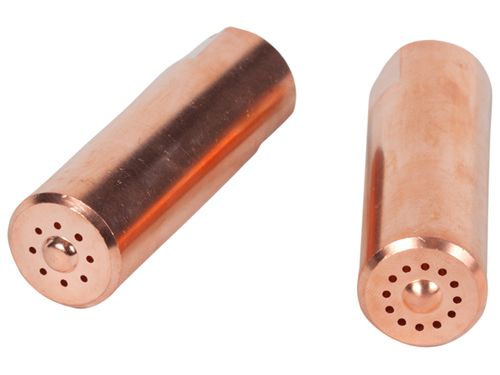

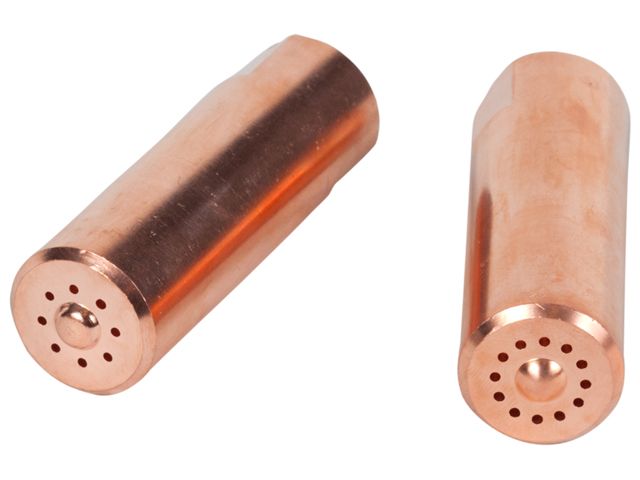

Oxy/Acetylene heating nozzles for use with separate heating tube/barrel & heating mixers. (Note size 2 is the largest oxy/acetylene heating tip available, for increased heating capacity/output please see Oxy/LPG heating tips).
Image Image Part No. Description Retail Incl. GST Where to Buy Enquiry Qty

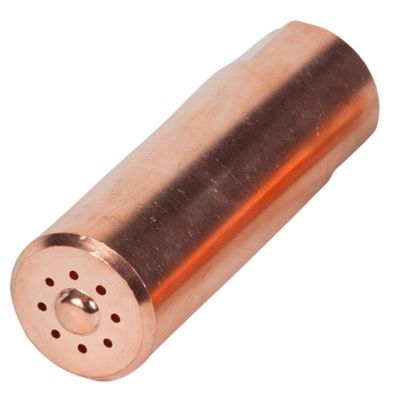

Tip Heating Oxy/Acet #01 "8x12" 180Mjh Weldclass
P4-AHT1
Size 1 (8x12*) Output ~180Mj/hr - Connects to P4-SHB Tube/Barrel
*8 x 1.2mm holes
Tip Heating Oxy/Acet #01 "8x12" 180Mjh Weldclass
P4-AHT1
Size 1 (8x12*) Output ~180Mj/hr - Connects to P4-SHB Tube/Barrel
*8 x 1.2mm holes
P4-AHT1

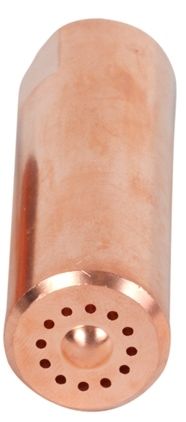

Tip Heating Oxy/Acet #02 "12x12" 215Mjh Weldclass
P4-AHT2
Size 2 (12x12*) Output ~215Mj/hr - Connects to P4-SHB Tube/Barrel
*12 x 1.2mm holes
Tip Heating Oxy/Acet #02 "12x12" 215Mjh Weldclass
P4-AHT2
Size 2 (12x12*) Output ~215Mj/hr - Connects to P4-SHB Tube/Barrel
*12 x 1.2mm holes
P4-AHT2
P4-AHT1 111.32

 WHY USE WELDCLASS OXY/ACETYLENE HEATING TIPS ?

  • Proven Quality
  • Precision Machined = Prevents flashback & back-fire

 APPLICATION INFO:

  • For use with oxygen/acetylene

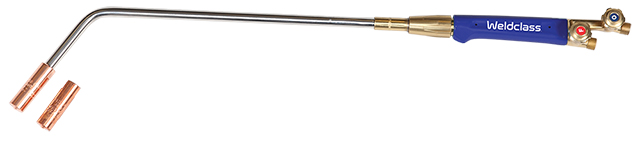

  • Connects to P4-SHB Tube/Barrel

 OPERATOR INFO:

Heating with Oxy/Acetylene has limitations and hazards. Care must be taken to ensure that the maximum draw-off consumption rate of acetylene is not exceeded (consult your gas supplier for details). For this reason, Acetylene tips are available only up to size 2.

Where possible, Weldclass recommends that Oxy/LPG be used in preference to Oxy/Acetylene. LPG is safer and less prone to flashback or backfire, and larger tip sizes are available for heavy heating. LPG is also often only a fraction of the cost of Acetylene.
