Heating Tips - Oxy/LPG

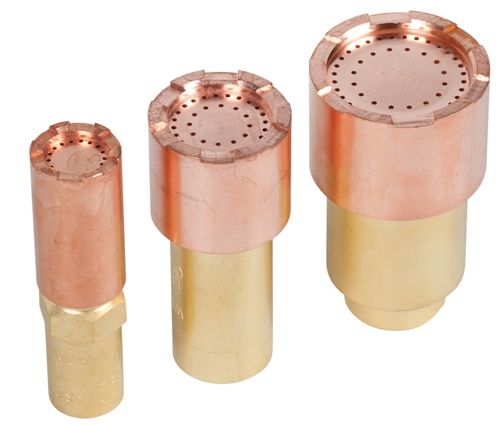

Oxy/LPG (Oxy/Propane) heating nozzles for use with separate heating tube/barrel & heating mixers. Oxy/LPG heating is safer than Oxy/Acetylene and allows use of larger capacity tips where required.

Where to buy

Image Image Part No. Description Retail Incl. GST Where to Buy Enquiry Qty

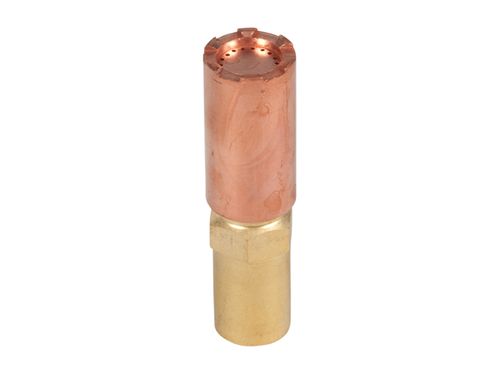

Tip-Heating LPG #01 "18x12" 280MJH (Dia. 21mm) Weldclass
P4-LPHT1
Size 1 (18x12*) Ø21mm Output ~280Mj/hr - Connects to P4-SHB Tube/Barrel
*18 x 1.2mm holes
Tip-Heating LPG #01 "18x12" 280MJH (Dia. 21mm) Weldclass
P4-LPHT1
Size 1 (18x12*) Ø21mm Output ~280Mj/hr - Connects to P4-SHB Tube/Barrel
*18 x 1.2mm holes
P4-LPHT1

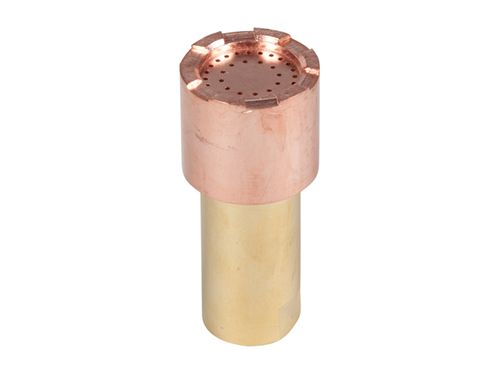

Tip Heating Oxy/LPG #02 "36x12" 420Mjh (Dia. 34mm) Weldclass
P4-LPHT2
Size 2 (36x12*) Ø34mm Output ~420Mj/hr - Connects to P4-SHB Tube/Barrel
*36 x 1.2mm holes
Tip Heating Oxy/LPG #02 "36x12" 420Mjh (Dia. 34mm) Weldclass
P4-LPHT2
Size 2 (36x12*) Ø34mm Output ~420Mj/hr - Connects to P4-SHB Tube/Barrel
*36 x 1.2mm holes
P4-LPHT2

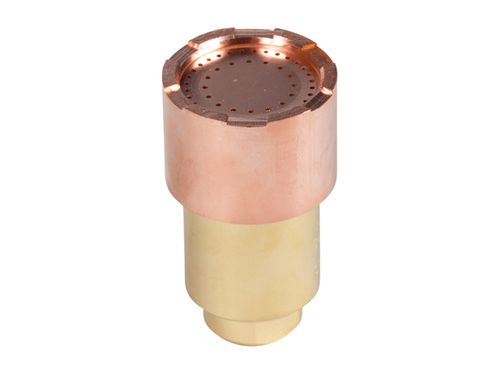

Tip Heating Oxy/LPG #03 "48x12" 560Mjh (Dia. 44mm) Weldclass
P4-LPHT3
Size 3 (48x12*) Ø44mm Output ~560Mj/hr - Connects to P4-SHB Tube/Barrel
*48 x 1.2mm holes
Tip Heating Oxy/LPG #03 "48x12" 560Mjh (Dia. 44mm) Weldclass
P4-LPHT3
Size 3 (48x12*) Ø44mm Output ~560Mj/hr - Connects to P4-SHB Tube/Barrel
*48 x 1.2mm holes
P4-LPHT3
P4-LPHT4
Size 4 (48x15*) Ø44mm Output ~840Mj/hr** - Connects to P4-SHB Tube/Barrel
*48 x 1.5mm holes. **Higher output of over 1050Mj/hr can be achieved when using high flow 10mm ID hose, with high flow regulators and flashback arrestors.
P4-LPHT4
Size 4 (48x15*) Ø44mm Output ~840Mj/hr** - Connects to P4-SHB Tube/Barrel
*48 x 1.5mm holes. **Higher output of over 1050Mj/hr can be achieved when using high flow 10mm ID hose, with high flow regulators and flashback arrestors.
P4-LPHT4
View Enquiry List
Ask a Question
P4-LPHT1 111.34

WHY USE WELDCLASS OXY/LPG HEATING TIPS ?
> Proven Quality
> Precision Machined = Prevents flashback & back-fire

APPLICATION INFO:
> For use with Oxy/LPG

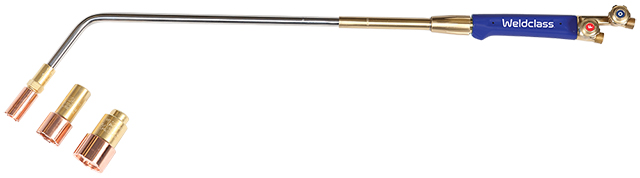

> Connects to P4-SHB Tube/Barrel

OPERATOR INFO:
Tip sizes 1-2 can be used with 'standard' heating mixer (P4-AHMX).
Tip sizes 2 & above must be used with 'Hi-Flow' heating mixer (P4-LPHMX)
