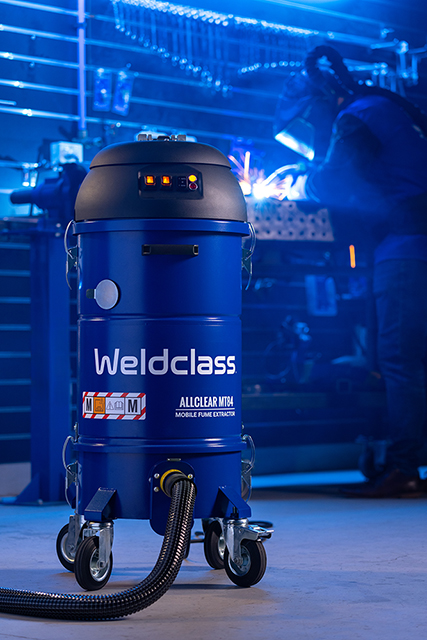

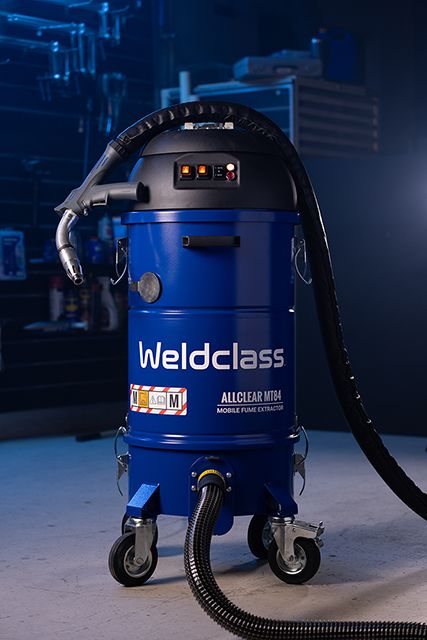

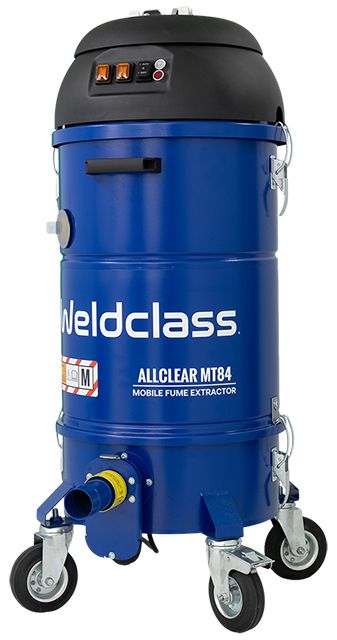

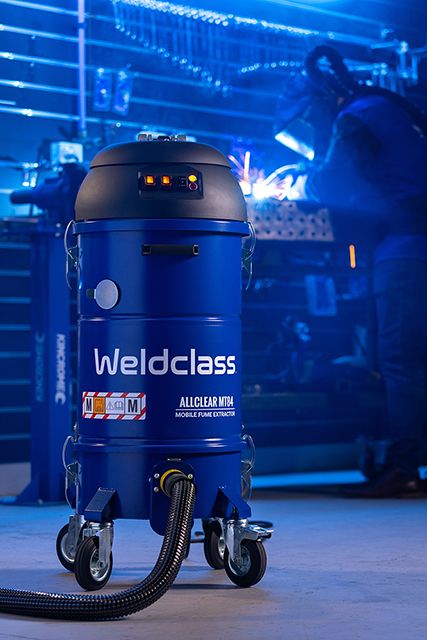

On-Torch Welding Fume Extractor ALLCLEAR® MT84
The ALLCLEAR® MT84 is Australia’s most powerful on-torch welding fume extractor in it’s class. Made in Europe, the MT84 is a heavy-duty unit with powerful dual motors and high airflow/suction capacity, designed for high volume and frequent industrial use. Robust, portable, easy to use and maintain. Special anti-clog filter technology provides increased filter life, and jet clean function allows for easy and safe in-situ filter cleaning. Operates on 230V 15A single-phase power.

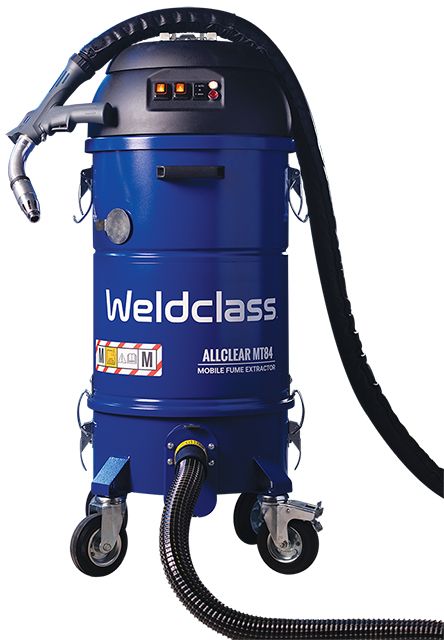

Available as a stand-alone unit, or as a package with ALLCLEAR® FT36E 4m MIG torch for the ultimate on-gun fume extraction package. Yet another ALLCLEAR® fume extractor that REALLY sucks!
Get a Quote | Request a Demo
Available as a stand-alone unit, or as a package with ALLCLEAR® FT36E 4m MIG torch for the ultimate on-gun fume extraction package. Yet another ALLCLEAR® fume extractor that REALLY sucks!
Get a Quote | Request a Demo
Also Known As:
On gun welding fume extractor
Disclaimer:
To the best of Weldclass's knowledge, and based on extensive current research, as at date of launch July 2025, the ALLCLEAR MT84 is the most powerful single-phase 230V welding fume extractor for on-torch use currently marketed and sold in Australia, measured by total motor power (kW) and/or maximum suction pressure (Pa). E.&O.E.
WC-MT84 141.35
AT A GLANCE:
- Fume collection that follows your weld
- Made in Europe
- 7 Year Warranty Offer*
- Operates on ~230V 15A single phase power
- Designed for high volume & frequent use: dual motors, large anti-clog filter, high airflow/suction
- Australia’s most powerful on-torch extractor in it’s class
- Fast, easy, and safe in-situ filter cleaning via jet-clean funtion
- Compact and portable, with large heavy-duty wheels for rugged workshop use
APPLICATIONS
- Gas MIG welding
- Gasless and Flux-Core welding
- NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour***
FEATURES
- Made in Europe
- Dual motors for powerful, best-in-class suction
- High extraction performance: max suction pressure 25,000pa, max air flow 380m³/hour
- Auto or Manual On/Off controls: Auto syncs with MIG torch trigger via current sensor*
- Spark arrestor/filter shields filter from coarse/hot particles, and reduces fire risk**
- Cleanable filter for extended service life & reduced operating cost

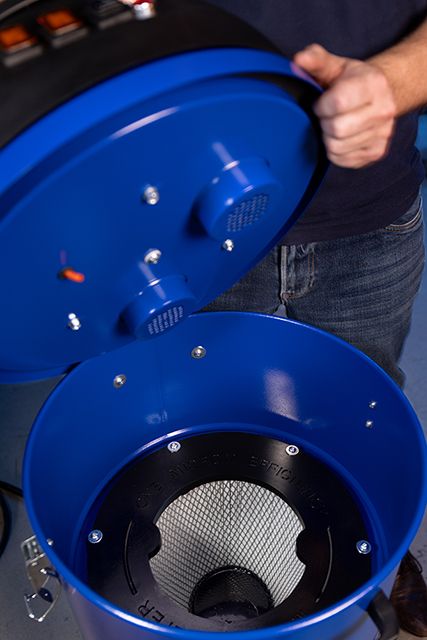

- Unique Anti-Clog filter technology: Conical filter and upward airflow prevents debris buildup, boosting airflow and filter life
- Large dust collection bin, allows safe removal of dust ejected from filter cleaning
- PFTE-coated filter for ease of cleaning
- Full filter warning

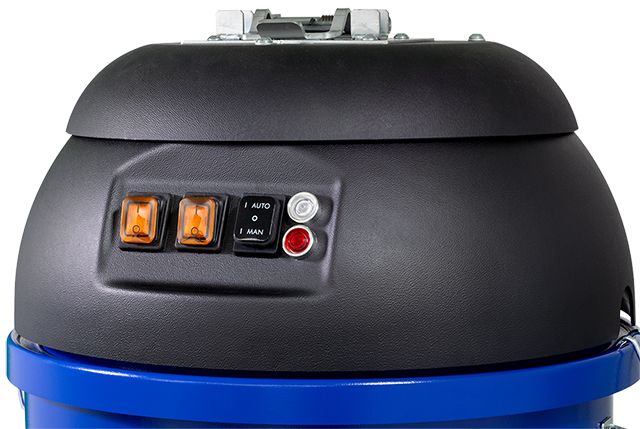

- Individual on/off control of each motor (1 motor for standard suction power, 2 motors for maximum suction)
SPECIFICATIONS
- Power supply: Single phase ~230V 15A
- Dimensions (mm): H1070 x W470 x L485
Length 485mm excluding inlet tube, length 600mm including inlet tube - Weight: 34kg
- Motor size: 2 x 1.3kw = total 2.6kw
- Max air flow: 380m³ / hour
- Max suction pressure: 25,000pa
- Filter type: M Class PTFE 99.9% 0.3μm, conical cartridge
- Filter surface area: 4m² with conical anti-clog technology
- Filter cleaning: in-situ cleaning via jet-clean funtion, remove/clean filter and dust bin for periodic maitenance
- Noise level: 72 dBA
- Max suction hose length: 20m

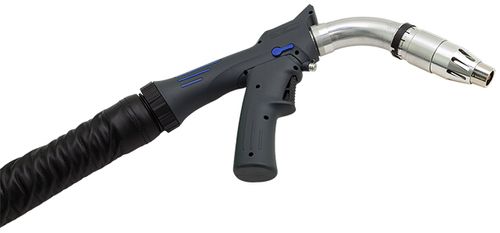

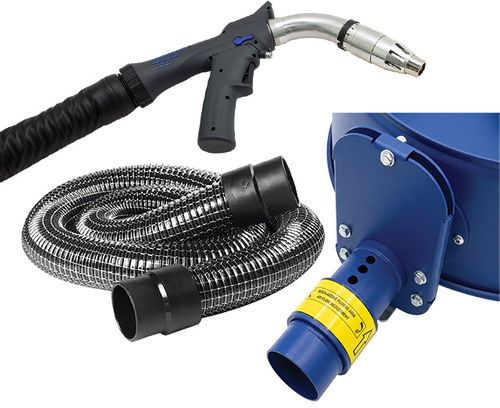

MATCH WITH WELDCLASS FT36E MIG TORCH
- Integrated fume extraction, ready to plug and play
- Torch trigger syncs with extractor for auto on/off function

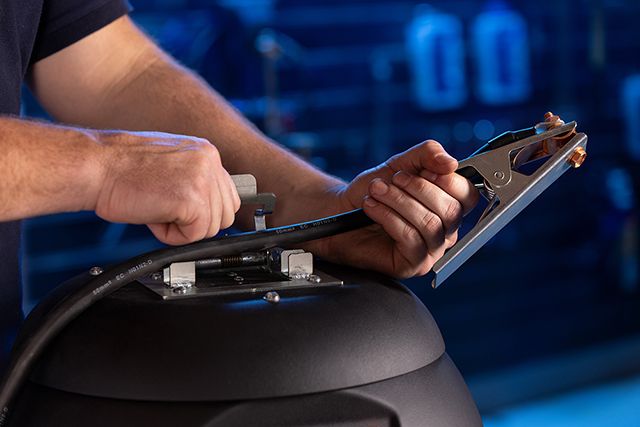

For auto on/off function, pass earth lead through current-sensing clip located on top of MT84 unit - Removable, fast changeover pistol grip
- Uses common BZL 36 consumable parts
- 320A capacity
OPTIONAL ACCESSORES & COMMON SPARE PARTS
- ALLCLEAR FT36E 4m Fume-Extraction MIG Torch (WC-06721)
- Main cartridge filter M-class PTFE (WC-06726)
- Rubber Seal (WC-06727)
*Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
**Regular maintenance must be carried out, and all warnings and instructions provided in user manual and on the unit must be followed, for ongoing safe use and prevention of fire hazards. Poor maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
***Fume extractors should not be used where aluminium dust (including grinding dust) is present, as this can be explosive when airborne. While aluminium welding fumes are safe to extract, most on-torch aluminium welding applications involve a high risk of dust presence. Oil mist and gases can also cause explosion. Water vapour will damage the filter.
