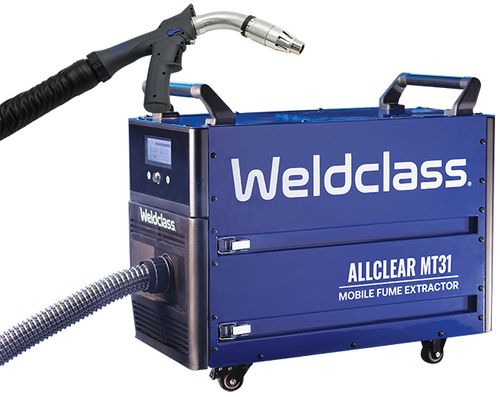

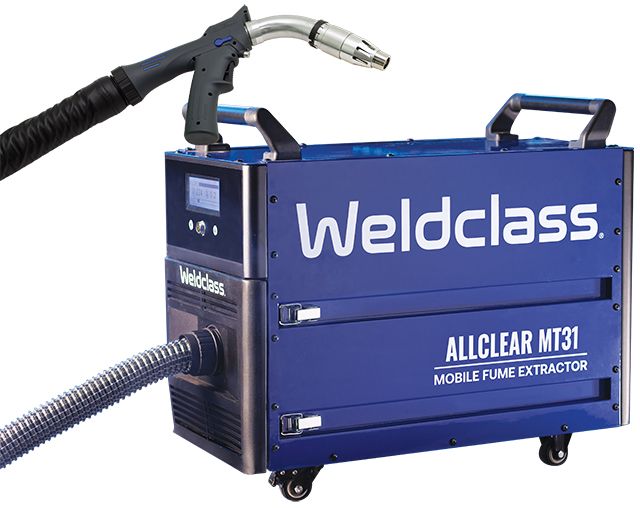

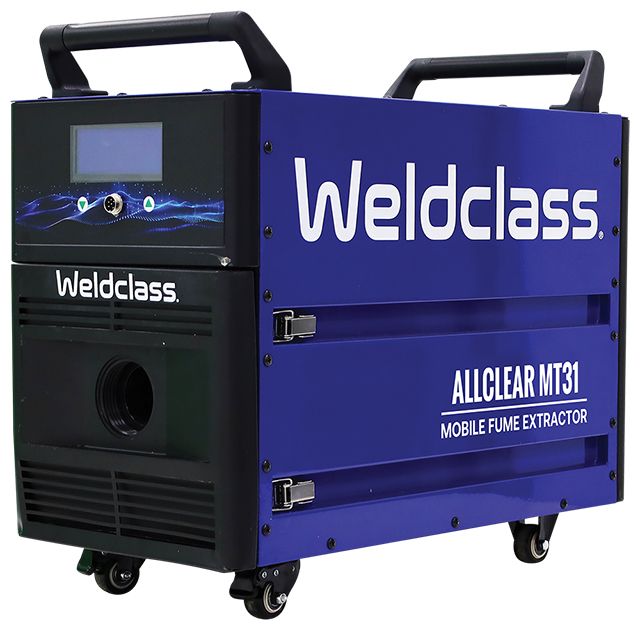

On-Torch Welding Fume Extractor ALLCLEAR® MT31

The ALLCLEAR® MT31 is a portable and versatile welding fume extractor, designed for On-Torch and portable use, in light-to-medium industrial applications. Incorporates a large cleanable / reusable filter for extended service life and reduced operating cost, and auto on/off function for syncing with torch trigger. Operates on 230V 10A single-phase power. Available as a stand-alone unit, or as a plug-and-play package with ALLCLEAR® FT36E 4m MIG torch.
For higher volume use and heavy industrial applications, consider the ALLCLEAR® MT84.

Get a Quote | Request a Demo
Image Image Part No. Description Retail Incl. GST Where to Buy Enquiry Qty
Fume Extractor ALLCLEAR MT31 + FT36E 4m MIG Torch Package Weldclass
WC-MT31K36E4

 ALLCLEAR MT31 Fume Extractor Package with FT36E 4m MIG Fume Torch

Fume Extractor ALLCLEAR MT31 + FT36E 4m MIG Torch Package Weldclass
WC-MT31K36E4

 ALLCLEAR MT31 Fume Extractor Package with FT36E 4m MIG Fume Torch

WC-MT31K36E4
Fume Extractor ALLCLEAR MT31 (For On-Torch & Mobile Extraction) 230V 10A Weldclass
WC-MT31

 ALLCLEAR MT31 Fume Extractor Unit Only 230V 10A

Fume Extractor ALLCLEAR MT31 (For On-Torch & Mobile Extraction) 230V 10A Weldclass
WC-MT31

 ALLCLEAR MT31 Fume Extractor Unit Only 230V 10A

WC-MT31
N/A
FT36E-MT31
ALLCLEAR FT36E MIG Fume Torch [view]
N/A
FT36E-MT31
ALLCLEAR FT36E MIG Fume Torch [view]
FT36E-MT31
Also Known As:
On gun welding fume extractor
WC-MT31 141.33



AT A GLANCE:

  • Fume collection that follows your weld
  • 7 Year Warranty Offer*
  • Operates on ~230V 10A single phase power
  • Designed for light-to-medium industrial applications (for high volume use, consider ALLCLEAR MT84 unit)
  • Auto On-Off, syncs with MIG torch trigger
  • Cleanable filter
  • Compact, portable, lightweight



APPLICATIONS

  • Gas MIG welding
  • Gasless and Flux-Core welding
  • NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour***



FEATURES

  • Auto On-Off, syncs with MIG torch trigger via current sensor
    Auto on/off is plug & play when using Weldclass FT36E MIG torch, other brand fume torches require earth clip (included)
  • Cleanable filter for extended service life & reduced operating cost
    Filters must be removed for cleaning, using appropriate PPE
  • Spark deflector shields filter from coarse/hot particles, and reduces fire risk**
  • Carbon filter removes odours from filtered air
  • Dust collection tray allows safe removal of dust ejected from filter cleaning
  • PFTE-coated filter for ease of cleaning
  • Variable speed (suction power) control
  • Filter fullness indicator



SPECIFICATIONS

  • Power supply: Single phase ~230V 10A
  • Dimensions (mm): H600 x W280 x L475
  • Weight: 24kg
  • Motor size: 1.2kw
  • Outlets: Single outlet/torch connection
  • Max air flow: 200m³ / hour
  • Filter type: E12 99.9% 0.3μm PTFE 99.9% 0.3μm, cylindrical cartridge
  • Filter surface area: 6m²
  • Filter cleaning: Remove-to-clean filter, with dust collection bin
  • Noise level: 70 dBA
  • Max suction hose length: 5m

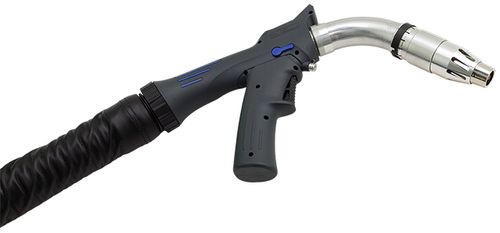

MATCH WITH WELDCLASS FT36E MIG TORCH

  • Integrated fume extraction, ready to plug and play
  • Torch trigger syncs with extractor for auto on/off function
  • Built-in light (in torch handle) illuminates the weld area prior to welding
  • Removable, fast changeover pistol grip
  • Uses common BZL 36 consumable parts
  • 320A capacity



OPTIONAL ACCESSORES & COMMON SPARE PARTS

  • ALLCLEAR FT36E 4m Fume-Extraction MIG Torch (WC-06721)
  • Main Cartridge Filter E12 PTFE (WC-06728)



*Standard warranty 1 year, with extended 7 year warranty available if registered online after purchase, click here for details.
**Regular maintenance must be carried out, and all warnings and instructions provided in user manual and on the unit must be followed, for ongoing safe use and prevention of fire hazards. Poor maintenance and disregarding of instructions and warnings may result in fire and other hazards that can cause damage, injury, and death.
***Fume extractors should not be used where aluminium dust (including grinding dust) is present, as this can be explosive when airborne. While aluminium welding fumes are safe to extract, most on-torch aluminium welding applications involve a high risk of dust presence. Oil mist and gases can also cause explosion. Water vapour will damage the filter.
