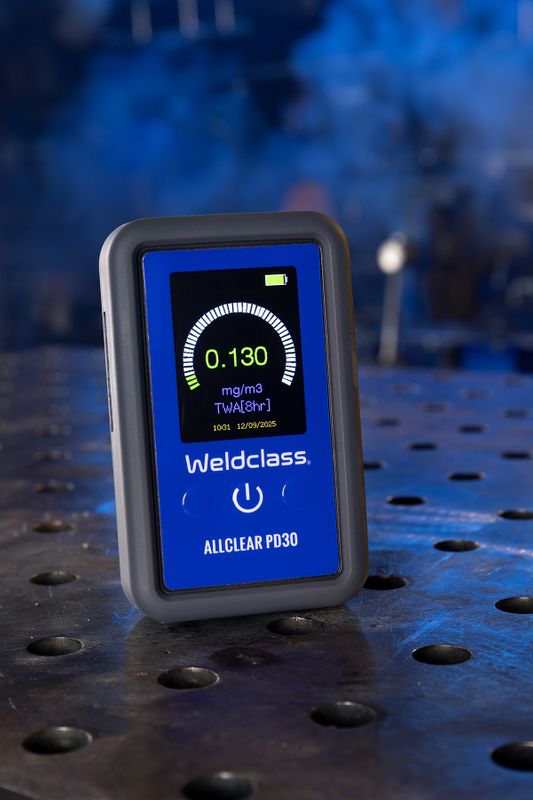

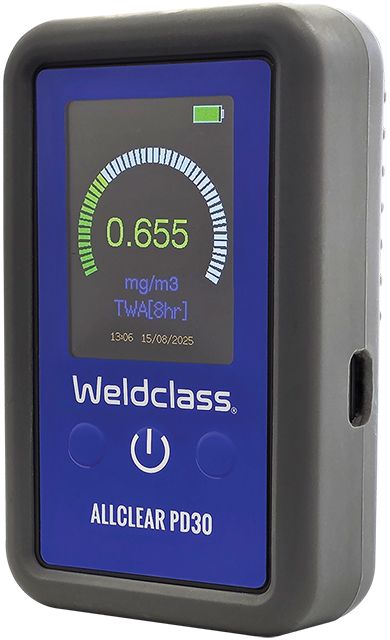

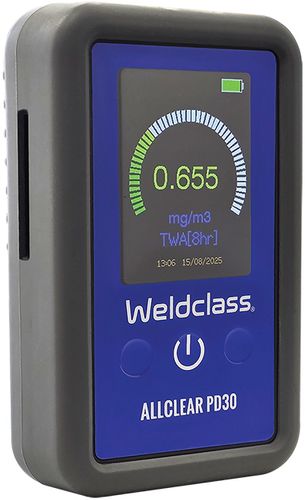

Welding Fume Monitor ALLCLEAR® PD30
Stay on top of workplace air quality with the Australian-made ALLCLEAR PD30 personal welding fume monitor. Lightweight and wearable, the PD30 measures welding fumes directly where your people work. Provides real-time, on-device TWA (Time-Weighted Average) fume readings, to support compliance with Australian legislation. With 12+ hours of runtime at a 1-second sampling rate and simple, colour-coded display, the PD30 is a dependable and easy-to-use solution for keeping welders safe on the job.
PD30 data can be viewed directly on the device, via WiFi on a mobile phone, or through our cloud platform - where multiple/unlimited devices can be connected to monitor fume levels across your workforce and workplace.
Get a Quote | Request a Demo Subscribe to AllClear Fume Cloud
PD30 data can be viewed directly on the device, via WiFi on a mobile phone, or through our cloud platform - where multiple/unlimited devices can be connected to monitor fume levels across your workforce and workplace.
Get a Quote | Request a Demo Subscribe to AllClear Fume Cloud
Also Known As:
Welding fume detector
Disclaimer:
The AllClear PD30 offers real-time insight into airborne particle levels, helping workplaces identify potential issues early and reduce unnecessary reliance on formal gravimetric assessments. While it can guide proactive health and safety decisions and streamline monitoring efforts, it is not a substitute for certified testing or compliance verification. The PD30 should be viewed as a valuable indicator and early-warning tool, used alongside professional evaluation and established safety standards.
WC-01668 141.42
KEY FEATURES

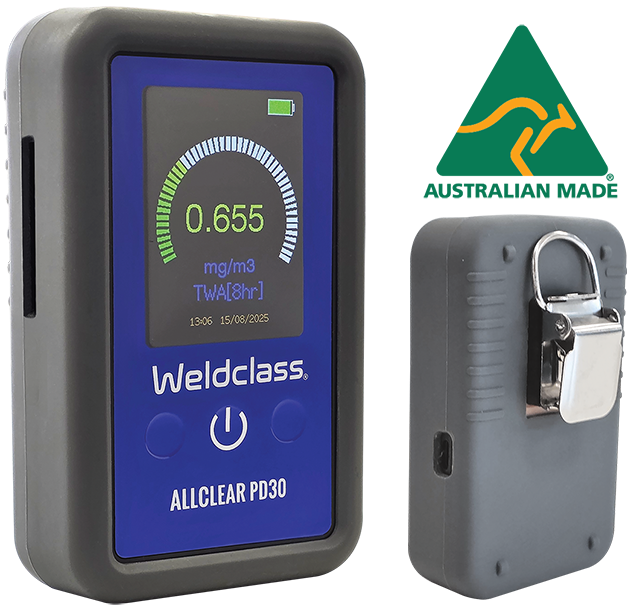

- Designed and Made in Australia

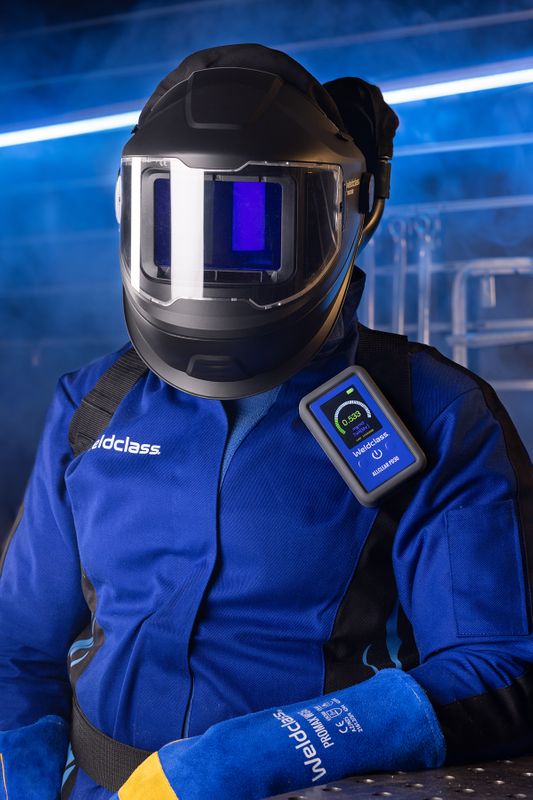

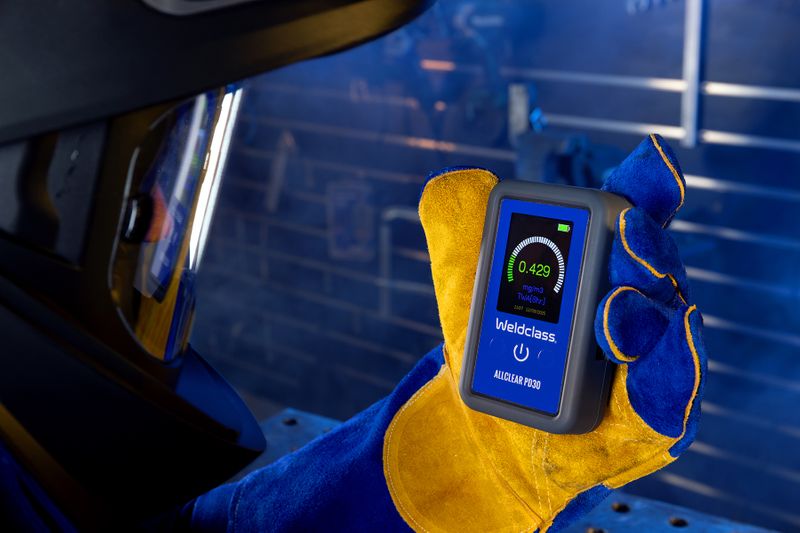

- Wearable: measure fume right where your team works
- Provices TWA (Time Weighted Average) reading, to support compliance with Australian legislation that specifies TWA standards/limits
- TWA reading displayed on PD30 device (unlike some other devices where TWA reading is not available on the device itself)
- Small and lightweight: 260g
- Runtime of 12+ hours with 1 second sample rate
- Shock absorbent protective rubber cover

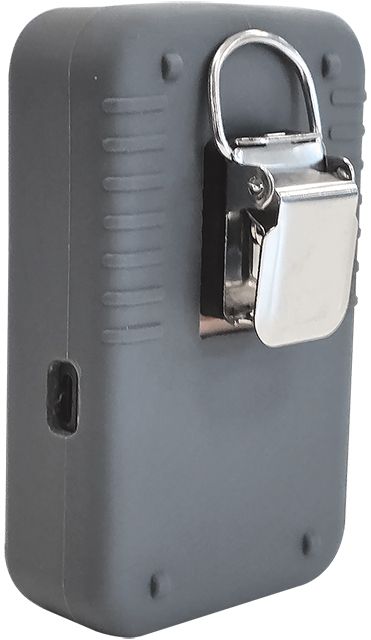

- Tough metal clip attaches to clothing or belts
DATA OPTIONS
- PD30 device: Real-time TWA reading
- Mobile phone web app (free, single device only, connect via WiFi): Real time TWA reading, alarm settings, download historical readings (up to 3yrs) via csv
- Cloud platform: Connect unlimited number of PD30 devices to track and monitor TWA readings across entire worksites, download historical readings, etc from one portal. Subscription fee per device applies.
SPECIFICATIONS
- Dimensions: H120 x W74 x D32mm
- Weight: 260g
- Charge cable connection: USB-C
- Battery life: 12+ hours, or 18 hours in power save mode
- Data connection: WiFi
- Data storage: 3 years
- Mounting: Metal material/clothing clip + D-loop ring
TECHNICAL DATA
- Particle size detection range: 0.3um – 10um
- Warnings: Inhalable / Respirable TWA8H (Time Weighted 8 Hours), and Inhalable / Respirable STEL (Short Term Exposure Limit)
- Housing material: Silicone rubber
- Mounting
- Battery size/type: 3.7V lithium ion
- Charger specifications: 240V 10A, 5V 1amp, USB-C connection
- Data connection: WiFi 802.11 b/g/n
- CPU: 240 Mhz
- Operating temperature range: -10OC to +60OC
- Operating humidity range: 0-90%, non-condensing
- Measuring method: Photometric (scattered laser)
- Measurement interval: 1 per second
- Sampling method: Dynamic controlled fan

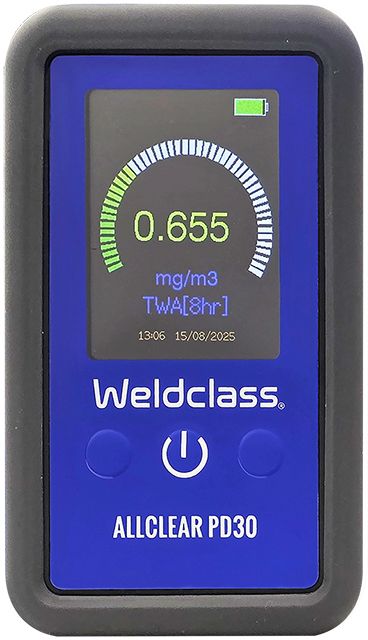

- Display: 2.4 inch TFT, full colour
- Callibration and maintenance: Return to Weldclass for service & callibration every 2 years from date of issue
- Country of origin: Made in Australia
- Datalog file format: CSV
- Datalog file grouping: Daily
- Datalog retrieval: Webserver, to smart device or PC
- Memory capacity: 16GB SD card + 4GB internal
*Standard warranty 2 years, with extended 7 year warranty offer available if registered online after purchase, click here for details.
