Now available with 7-year warranty.

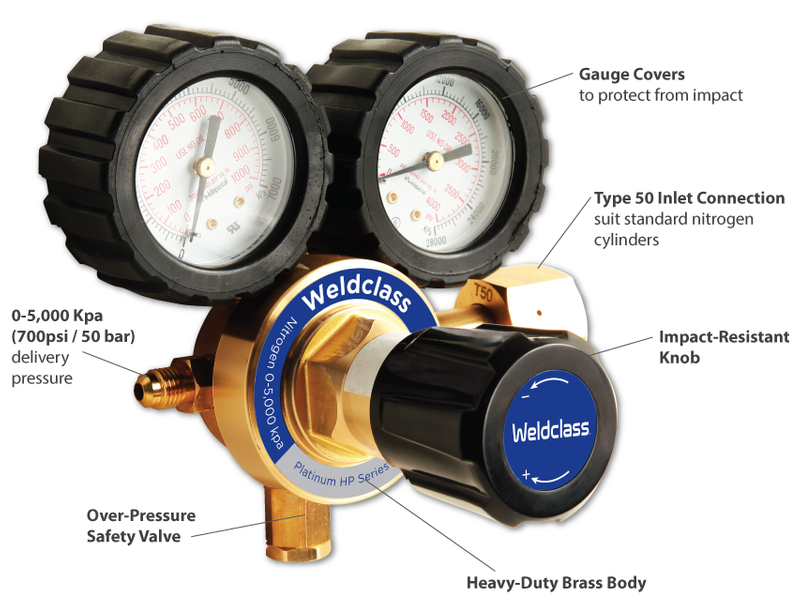

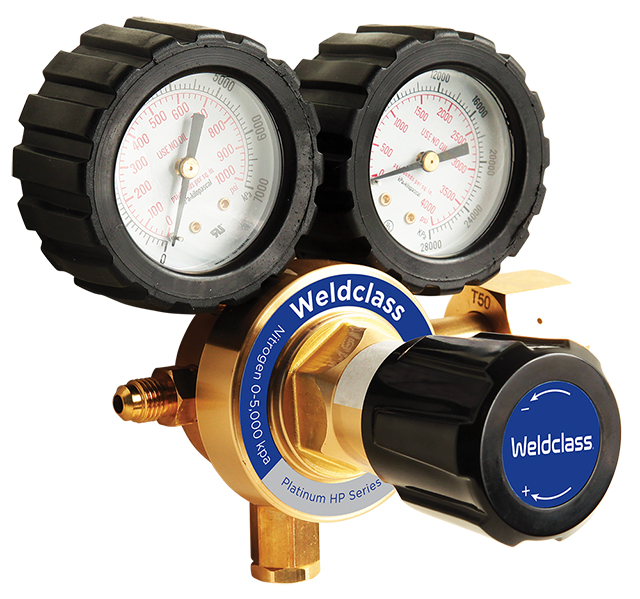

Nitrogen regulator for applications requiring delivery pressures of up to 5,000 Kpa (700 psi / 50 Bar). Especially suited for HVAC (air conditioning, refrigeration, etc) pressure testing & flushing. Extremely robust design to withstand the rigours of site work: Heavy duty rubber gauge covers protect gauges from impacts, impact-resistant knob & solid brass body. Type 50 (female) inlet connection for fitting to standard nitrogen cylinders. PLATINUM series, no quality short-cuts. Designed and manufactured by a team with over 40 years experience in gas equipment engineering. If higher outlet pressure is required, see the Weldclass Extra-high pressure nitrogen regulator.
Weldclass products are sold through leading industrial supply stores across Australia & beyond.
So we can direct you to your nearest stockist, please:
Use ENQUIRY LIST
Browse products > Select a Qty > 'ADD TO ENQUIRY LIST' > Follow the prompts to submit. We will respond ASAP to advise your nearest stockist for the items you selected.
4-S200NTN, Nitrogen refrigeration regulator, Nitrogen Gas Regulator, Nitrogen Regulator Kit
WC-03401 104.16
KEY FEATURES
> 7-Year Warranty*
> Heavy-duty Platinum series
> Rubber gauge covers protect gauges from impact
> Commonly used for HVAC (heating & air conditioning) pressure testing
PRESSURE CAPACITY
> Max Output (delivery pressure): 5,000KPa / 50 bar / 700psi
> Max Inlet (cylinder pressure): 22Mpa / 22,000Kpa / 220 bar / 3,190psi
CONNECTIONS
> Outlet: "1/4 Flare" (JIC 37° Flare Fitting) with thread size / O.D. 7/16-20 (= approx 11.1mm)*
*Note: Australian Standards does not permit use of 5/8" UNF outlet on regulators exceeding 2,000 kpa output
> Inlet: Type 50 (W24x2 14 TPI RH Female nut)
> Port (inlet & outlet port hole in regulator body): 1/4" NPT (tapered)
*Standard warranty 12 months, with extended 7 year warranty available if registered online after purchase, click here for details.
Now available with 7-year warranty.

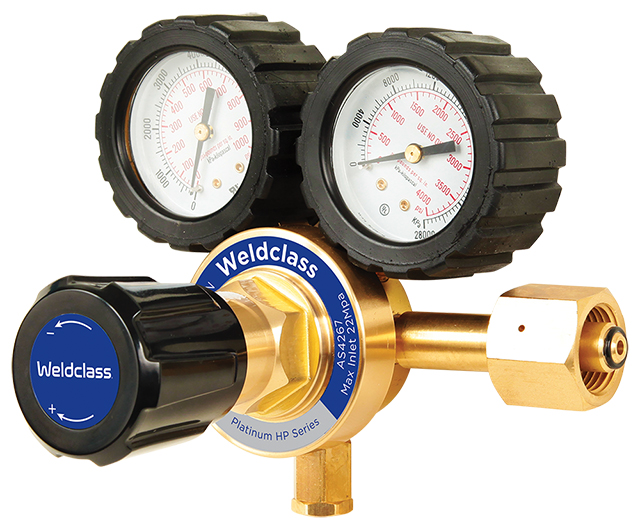

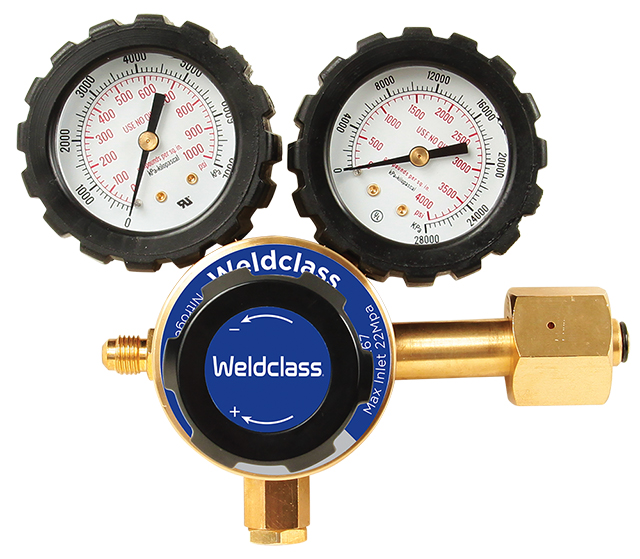

Extra-high pressure (EHP) Nitrogen regulator for applications requiring delivery pressures of up to 28,000 Kpa (4,000 psi / 280 Bar). Robust design to withstand the rigours of site work. Fitted with Type 50 (female) inlet for connection to standard nitrogen cylinders and supplied with additional Type 51 inlet for connection to EHP (extra high pressure) cylinders if required. PLATINUM series, no quality short-cuts. Designed and manufactured by a team with over 40 years experience in gas equipment engineering.
