Centering Heads - Contour Curv-O-Mark

Time-saving tool to locate & mark center points on pipe, or points at specific angles. Fitted with adjustable dial bubble protractor. Available in standard or jumbo models. Click on 'Video' to view a demonstration.

Where to buy

Image Image Part No. Description Unit of Issue Enquiry Qty
CONTOUR CENTERING HEAD STANDARD #6
KC-J1879
Centering Head Standard No.6 - 100mm head for pipe 12mm+
Unit:
EACH
CONTOUR CENTERING HEAD STANDARD #6
KC-J1879
Centering Head Standard No.6 - 100mm head for pipe 12mm+
KC-J1879
EACH
CONTOUR CENTERING HEAD JUMBO #7
KC-J1880
Centering Head Jumbo No.7 - 200mm head for pipe 25mm+ with spring-loaded / trigger operated pin
Unit:
EACH
CONTOUR CENTERING HEAD JUMBO #7
KC-J1880
Centering Head Jumbo No.7 - 200mm head for pipe 25mm+ with spring-loaded / trigger operated pin
KC-J1880
EACH
Also Known As:
Jackson Contour Curv-O-Mark / 14775 / CURV0006 / T106 / 0721-0005 / 14776 / CURV0007 / T107 / 0721-0006 / Australia

WHY CHOOSE JACKSON CONTOUR CENTERING HEADS ?
> Aids in the settings of centerlines, establishing angles and marks for butt-ins, locating points inside pipes and tanks, laying out keyways and measuring declivity
> Used most often for finding top dead center or bottom dead center on pipe
> You can use it to find the location of other ordinate lines on the sides or at different angles.

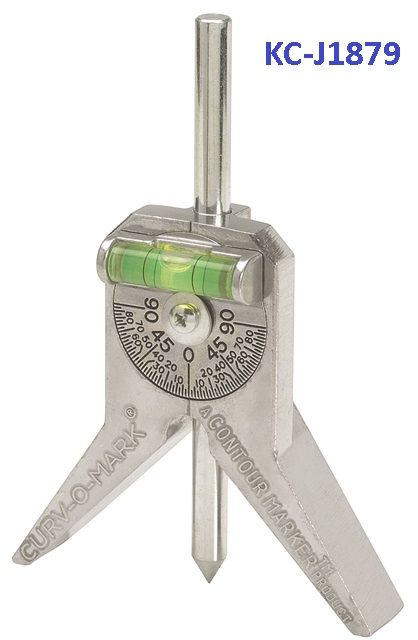

APPLICATION INFO - STANDARD KC-J1879:
> Use on pipe 12mm (1/2 in) & larger
> Has a 100mm (4 in) Y-type head and is fitted with adjustable dial bubble protractor (no.DSL)

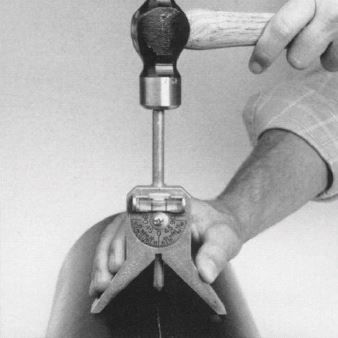

> Centering pin is manually operated (use with a hammer)

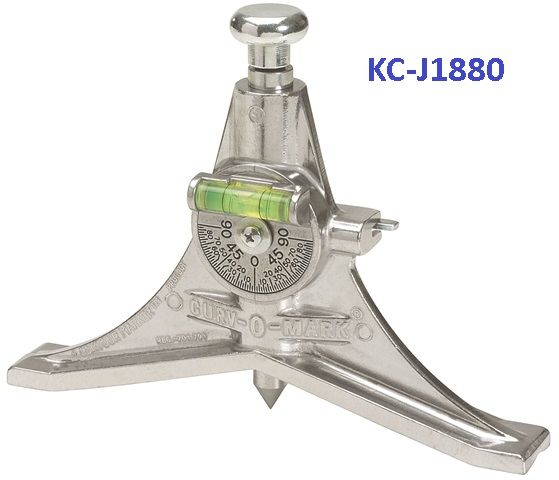

APPLICATION INFO - JUMBO KC-J1880:
> Use on pipe 25mm (1 in) & larger
> Has a 200mm (8 in) Y-type head and is fitted with adjustable dial bubble protractor (no.DSL)

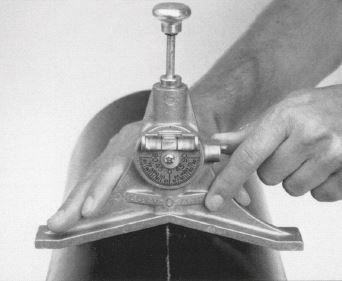

> Centering pin is spring loaded & trigger operated (hammer not required)

WHAT ELSE ?
> Made from aluminium with a hardened steel pin

RELATED ACCESSORIES:
> Dial-level combination can be repaired using KC-J1905 Dial Set Level (No. DSL)

WELDCLASS is the official Australian distributor for Jackson Contour Curv-O-Mark products.
