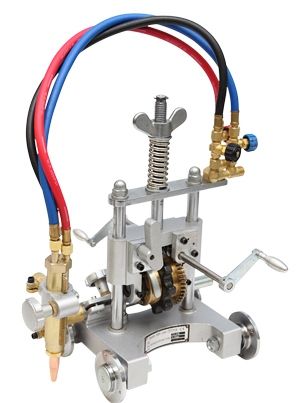

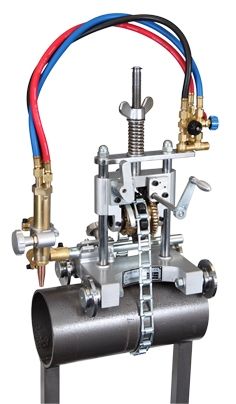

Pipe Cutter TX-21Q

Now available with 7-year warranty. A tried & tested, reliable hand-crank style gas (flame) pipe cutting machine. The TX-21Q has a unique "quick clutch" feature to allow fast positioning of the machine around the pipe, without needing to wind the handle - saves valuable time on the job. Use with Oxy/Acetylene or Oxy/LPG. For specifications & further details, click on 'More Info' or 'Downloads'.

Where to buy

Image Image Part No. Description Retail Incl. GST Where to Buy Enquiry Qty
Pipe Cutter TX-21Q W/Quik Clutch & 2.4M Chain Weldclass
5-TX21Q
TX-21Q Pipe Cutter w/Quick-Clutch & 2.4m Chain
Retail Incl. GST: $1,699.01
Pipe Cutter TX-21Q W/Quik Clutch & 2.4M Chain Weldclass
5-TX21Q
TX-21Q Pipe Cutter w/Quick-Clutch & 2.4m Chain
5-TX21Q
$1,699.01
View Enquiry List
Ask a Question
Also Known As:
Oxy gas pipe cutter with chain, oxy acetylene & oxy lpg flame cutting, portable manual pipe cutting machine for steel pipe, chain and gear hand crank drive pipe cutter
5-TX21Q 129.21

WHY USE WELDCLASS PIPE CUTTER ?
> 7-Year Warranty*
> Light weight and portable
> Unique quick clutch feature; quickly engages or disengages the drive sprocket to allow fast positioning of the machine by hand prior to cutting
> Robust design

APPLICATION INFO:

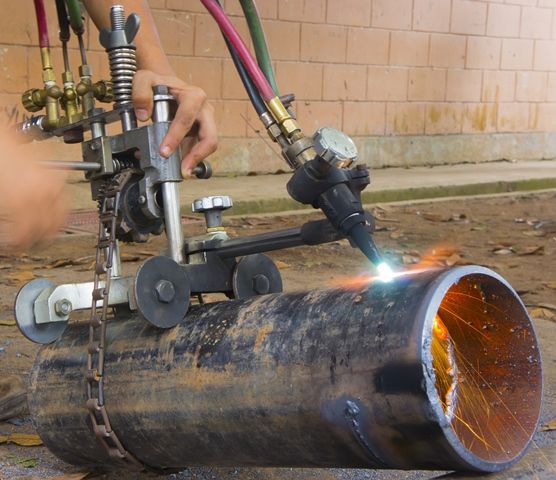

> Ideal for cutting steel pipes 100mm or larger
> Chain is used to hold the cutter and guide it around the pipe
> Propelled by hand crank, No power or electricity needed

WHAT ELSE ?
> Use with Oxy/ Acetylene or Oxy/ LPG
> Backlash free worm drive system for smooth cutting
> Uses common chain design - chain is interchangeable with other machines
> Horizontal and vertical torch adjustment
> Straight or bevel cutting
> Supplied with additional wheel flanges which bolt onto existing front wheels to increase chassis clearance for cutting smaller pipes
> Valves located away from the torch for easy operation

FAQs:
> Q: Why does this pipe cutting machine use Type 51/54 3-seat tips, instead of standard Type 41/44 tips as used on hand torches? A: Type 41/44 tips are not used on cutting machines for a number of reasons, one being that they are not the best design to achieve good performance in machine cutting applications. Type 51/54 3-seat tips are a very common tip used on many oxy cutting & machines in Australia & other countries.

RELATED INFO & ARTICLES
Contour Pipe Fitting Tools - Check out the range here
Pipe Cutting with CNC plasma
*Standard warranty 12 months, with extended 7 year warranty available if registered online after purchase, click here for details.
