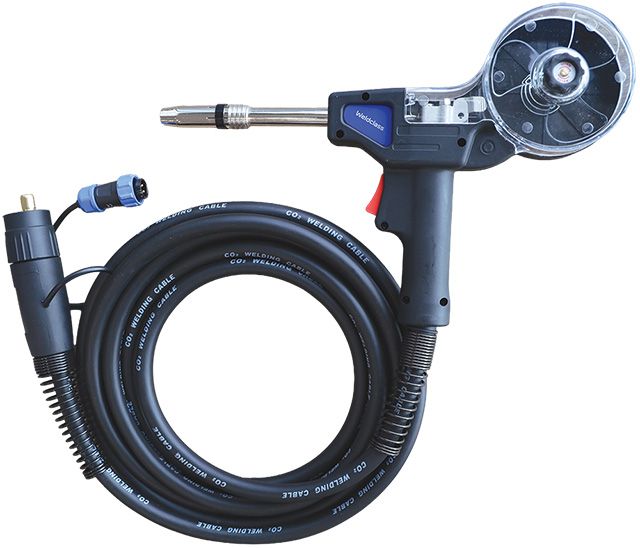

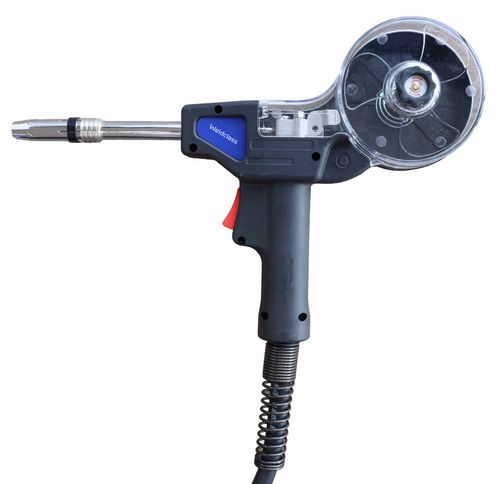

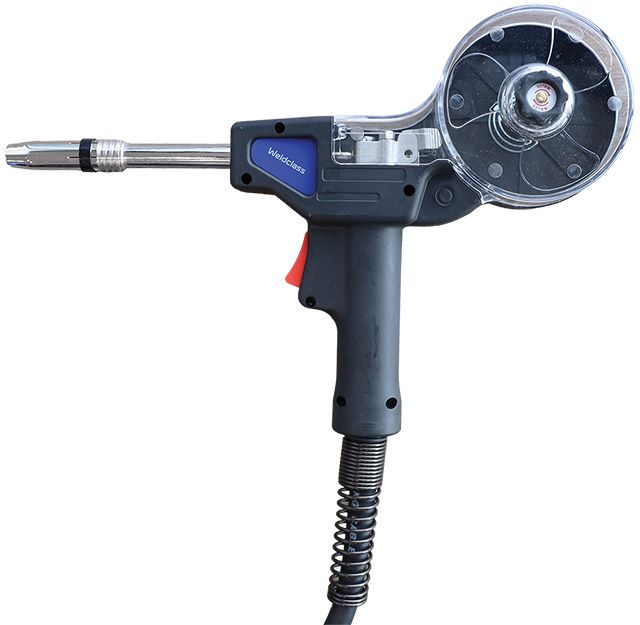

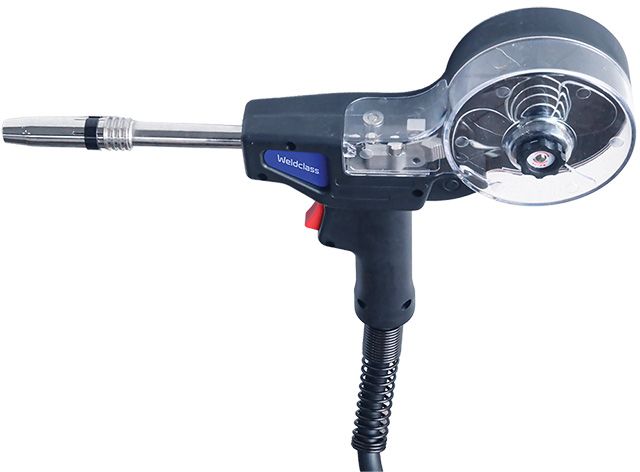

W06316 67.04
SUITS:
- Suits FURY 165 MPST, 185 MPST, 205 MPST MIG welders
- Note: Plug type and plug wiring configuration are configured to suit the above Weldclass machine models. Weldclass does NOT offer any guarantee that these torches will suit other machines/brands/models.
OPERATING INFO:
- FURY MPST machines: Spool gun switch inside wire feeder compartment must be switched to "Spool Gun". Adjust wire feed speed using the “Amps” control knob on the front of the machine.
INCLUDES:
- U-Groove Roller for 0.9/1.0mm Aluminium
- V-groove roller for 0.8/0.9 steel/solid wire
SPECIFICATIONS:
- Torch Style: Binzel 24 style
- Current Capacity: max 240 amps
- Voltage: 24V
- Electrical/control plug: 4 pin
- Drive roller size: 13.5mm OD, 6.5mm ID, 14.5mm wide
Related Products
-
Binzel 24 style MIG welding torches and consumable/spare parts. Now available with 7-year warranty. Manufactured with premium raw materials, no quality short-cuts. Torches are designed in Europe, with 'hidden' details like cable quality and crimp fitting design taken care of, to ensure reliability and long service life. Maximum capacity 240 amps, commonly used for light-to-medium fabrication. All torches fitted with 'Euro' connection to suit most MIG welders.
-
5356 grade MIG (GMAW) wire for welding a wide range of magnesium-bearing aluminium alloys. One of the most widely-used grades of aluminium wire. A tried and proven quality wire, manufactured with strict quality-control, layer-wound for reliable wire feeding. Available in 0.9/1.0/1.2mm in 0.45/2/6kg spools.
Classifications: AWS A5.10: ER5356, ISO AS/NZS 18273: S AL 5356 -
Stop dreaming and weld better than the rest with this simple-to-use pulse machine! The FURY 165 MPST delivers impressive Pulse performance from standard 10A power supply. Lightweight, compact and user-friendly, it features Pulse MIG, Pulse Stick and Pulse Lift DC-TIG for smoother welds, lower spatter and improved finish quality.
With 165A max output, it welds from approx. 0.8mm to 8mm, making it ideal for maintenance, light fabrication and serious DIY projects.
Pulse MIG provides a stable, controlled arc with reduced heat input — perfect for Aluminium, Stainless and Mild Steel. It’s also Spool Gun ready for easier Aluminium work.
Pulse STICK offers better control in vertical and overhead positions, while adjustable Pulse Lift-TIG (torch optional) allows fine-tuning for clean, professional welds on steel and stainless.
Simple to use, intuitive control panel allows most settings and controls to be used without getting your head stuck in the instruction manual. Geared 2-roll wire drive system ensures smooth, reliable feeding — especially important for softer wires.
Supplied as a comprehensive Value Kit, with bonus Promax 130 welding helmet, gloves, MIG pliers and cooler bag.
Advanced Pulse control. 10A convenience. Awesome value! -
Amp up your welding ambition and weld like the best with this simple-to-use pulse machine! The FURY 185 MPST delivers professional results from standard 10A power supply. Compact, powerful and easy to use, it features Pulse MIG, Pulse STICK and Pulse Lift DC-TIG, giving you greater control, reduced spatter and cleaner-looking welds.
With 185A max output, it welds from approx. 0.8mm to 10mm, ideal for workshop, site and serious DIY use.
Pulse MIG provides a smoother arc and lower heat input, making it perfect for Aluminium, Stainless and Mild Steel. And it’s Spool Gun ready for easier Aluminium welding.
Pulse STICK improves control in vertical and overhead positions, helping reduce sagging and burn-through.
Adjustable Pulse Lift-TIG (torch optional) allows you to fine-tune heat input for professional-looking welds on steel and stainless.
Simple to use, intuitive control panel allows most settings and controls to be used without getting your head stuck in the instruction manual. Geared 2-roll wire drive system ensures smooth, positive feeding — especially important for soft wires like Aluminium.
Supplied as a comprehensive Value Kit, with bonus Promax 130 welding helmet, gloves, MIG pliers, cooler bag.
Advanced Pulse performance. 10A convenience. Awesome value!
-
Take full control of your jobs and weld like a pro with this easy-to-use pulse machine! The FURY 205 MPST packs serious Pulse performance from standard 10A power supply. Designed for greater output and capability, it features Pulse MIG, Pulse STICK and Pulse Lift DC-TIG for superior arc control, reduced spatter and outstanding weld appearance.
With a powerful 205A max output, it welds from approx. 0.8mm to 12mm, making it ideal for those heavier workshop and site applications.
Pulse MIG delivers a smooth, low-heat arc — excellent for Aluminium, Stainless and Mild Steel — and it’s Spool Gun ready for enhanced Aluminium performance.
Pulse STICK improves positional welding control and gap-bridging ability. Adjustable Pulse Lift-TIG (torch optional) provides refined heat control for high-quality welds on steel and stainless.
Simple to use, intuitive control panel allows most settings and controls to be used without getting your head stuck in the instruction manual. Geared 2-roll wire drive system ensures strong, consistent wire feed performance.
Supplied as a comprehensive Value Kit, including bonus Promax 130 welding helmet, gloves, MIG pliers and cooler bag.
Maximum Pulse capability. 10A convenience. Awesome value! -
Replacement Drive Roller Kit to suit all Weldclass Spool Guns. Also suits various other spool gun brands/models (check roller size). Common 13.5mm OD x 6.5mm ID x 14.5mm width roller size.
Includes one each of following rollers:
U-groove for Aluminium 0.8/0.9mm
U-groove for Aluminium 1.0/1.2mm
V-groove for steel 0.8/0.9mm
Knurled for gasless 0.8/0.9mm
