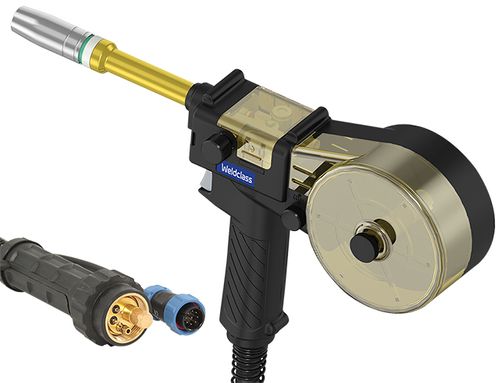

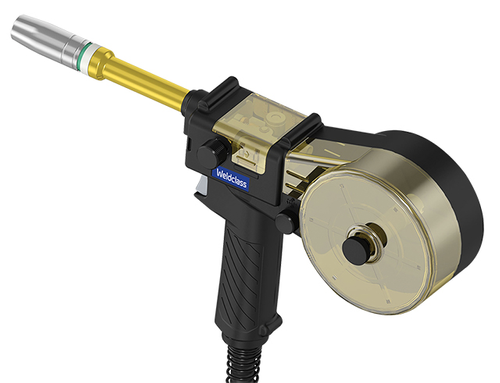

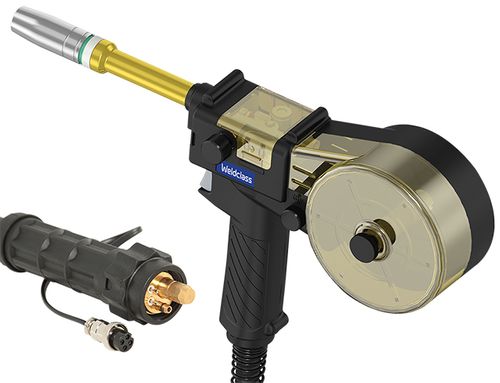

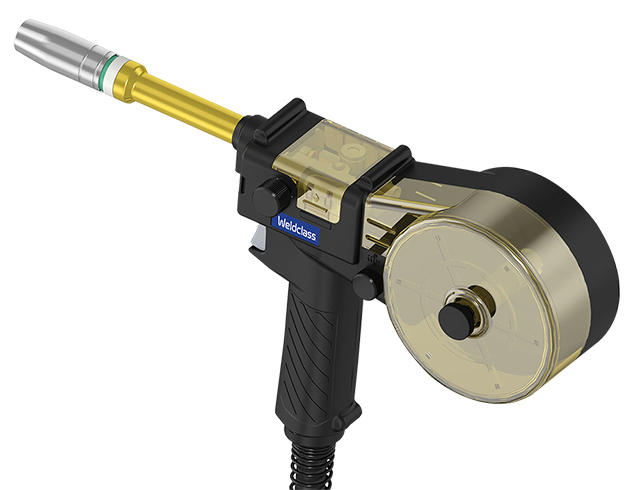

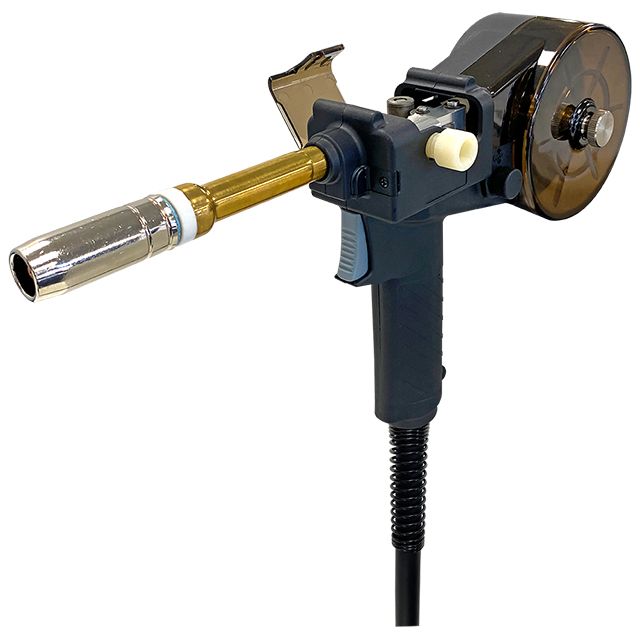

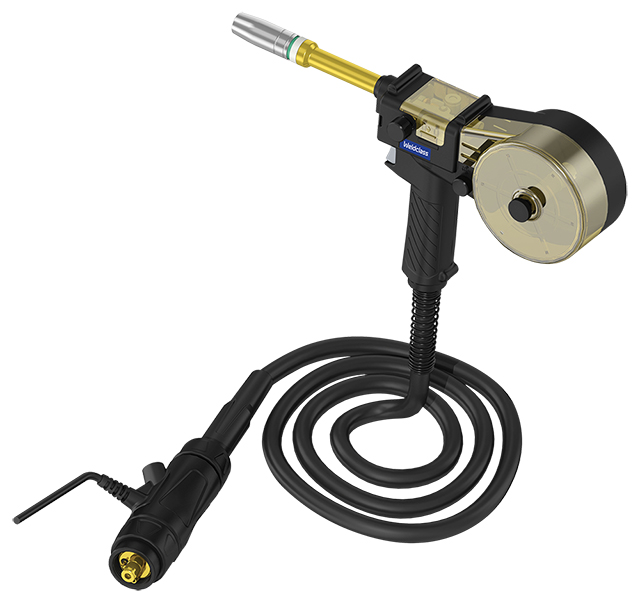

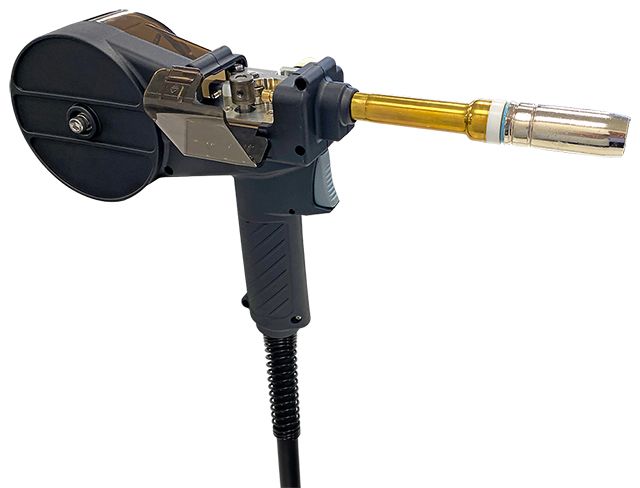

Spool Guns - BZL25 Series
BZL-25 series Spool Guns to suit various Weldclass MIG welders. Max 230A capacity, takes Binzel 25 style front-end torch consumables.
Disclaimer:
The products advertised above are original Weldclass products only. Weldclass is not affiliated in any way with Binzel, and the products are not original Binzel. Any references to Binzel trade names and/or part numbers are for identification purposes only.
WC-06203 67.07
SUITS:
- WC-06203 Suits FORCE 205MST, 255MST, 290MST, 350MST, 395MST MIG welders
- WC-06610 Suits FORCE 160MST*, 180MST* & 200MST MIG welders.
*Suits models with spool gun switch & socket on rear of machine. Older models without this are not spool gun compatible. - Note: Plug type and plug wiring configuration are configured to suit the above Weldclass model machines. Weldclass does not offer any guarantee that these torches will suit other machines/brands/models.
OPERATING INFO:
- 205/255/290/350/395MST: Must be in Manual MIG mode (Program 0 on 205/255MST) & Spool gun mode must be selected. Adjust wire feed speed using the control knob on the Spool Gun. Wire feed rate will show on machine LCD display.
- 200MST: Mode switch must be switched to "MIG" and Spool-Gun switch switched to "Spool Gun". Adjust wire feed speed using the control knob on the front of the machine.
- 160MST & 180MST: Applies to models with spool gun switch & socket on the rear of the machine. Mode switch on the front of the machine must be switched to "MIG" and Spool-Gun switch on the rear of the machine must be switched to "Spool Gun". Adjust wire feed speed using the control knob on the front of the machine.
INCLUDES:
- U-Groove Roller for 0.9/1.0mm Aluminium
- V-groove roller for 0.8/0.9 steel/solid wire
SPECIFICATIONS:
- Torch Style: Binzel 25 style
- Current Capacity: 230 amps
- Voltage: 24V
- Electrical/control plug: WC-06610 = 4 pin / WC-06203 = 9 pin
- Drive roller size: 13.4mm OD, 6.4mm ID, 14.3mm wide
